ACROLINK 7N-A2400 Leggenda Interconnect Signal Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The ACROLINK 7N-A2400 Leggenda is a 2-core interconnect cable, available with RCA or XLR connectors. ACROLINK's 7N copper is guaranteed to contain no more than 0.00001% of all impurities.

Conductor

Two conductors of 7N Cu D.U.C.C. Stressfree copper (0.26mm × 19 strands each) are twisted at high density and optimal tension in opposite directions while being coated with squalane oil, and insulated with high-purity polyolefin.

Silk Thread, Inner Sheath and Double Shield

Silk thread between the conductors strengthens static removal, and the inner sheath is high-performance polyolefin mixed with amorphous powder to suppress unwanted vibration. Outside it, a double shield of copper foil tape and a UEW + silver-plated annealed copper braid is applied, and the cable is finished with a UV-resistant polyurethane outer sheath.

Connectors

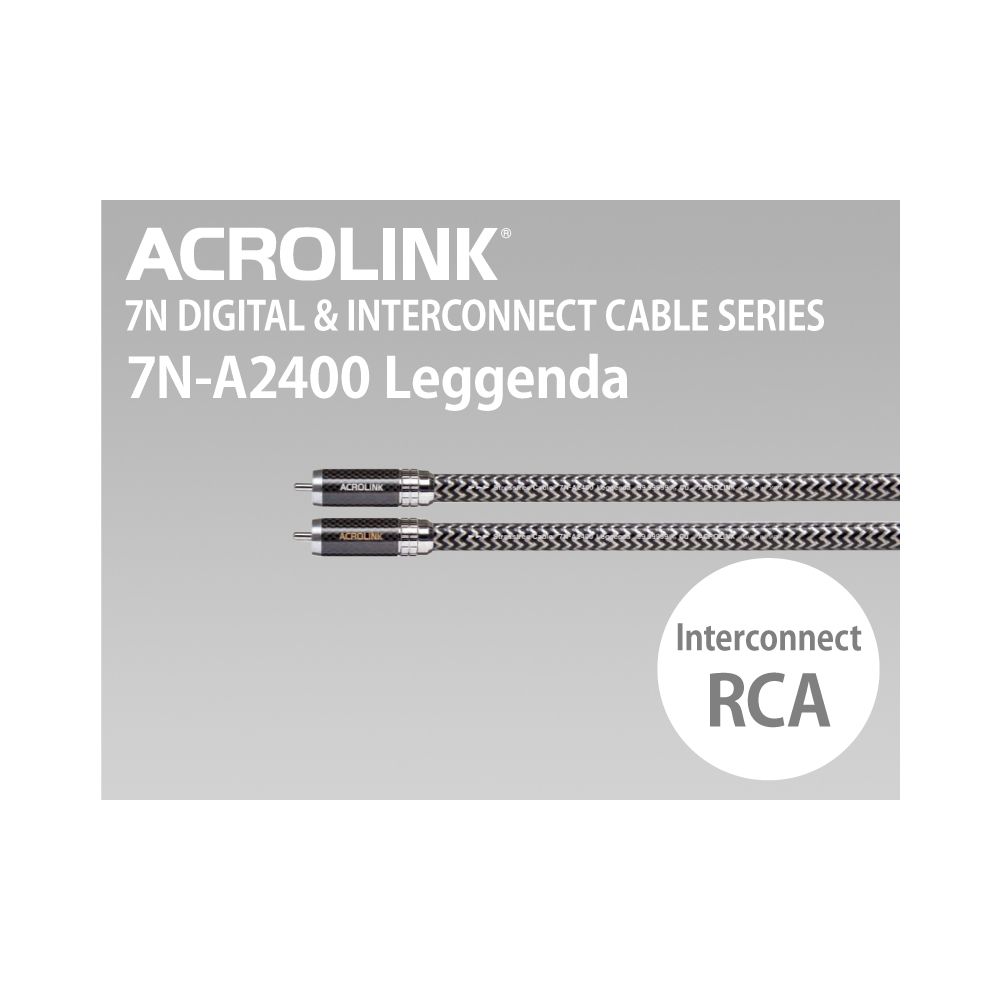

RCA: Inherited from the previous 7N-A2400 III. The body is machined from solid iron-free tellurium copper, the center pin is hollow, and the cover is aluminum and carbon fiber to disperse resonance and reject external noise. Contacts: hollow tellurium copper (center) and beryllium copper (cold) with thick direct rhodium plating.

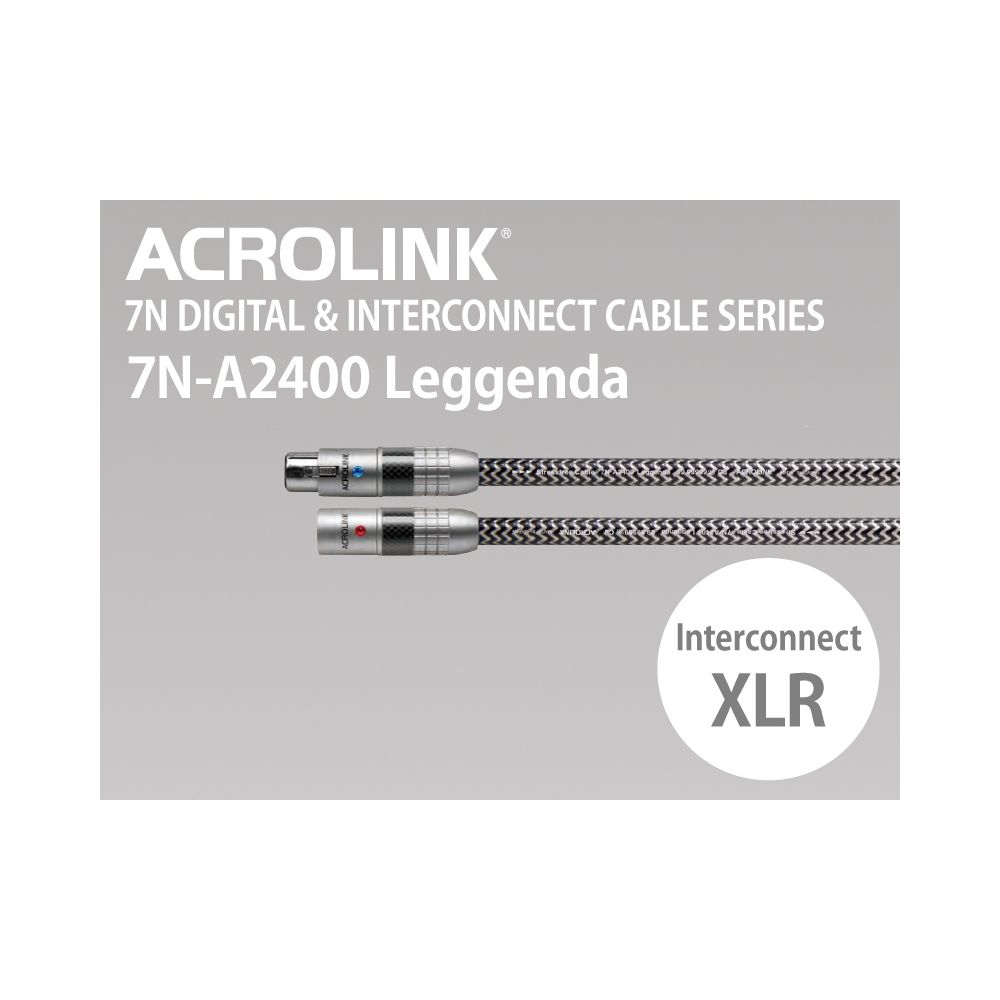

XLR: The upper-grade connectors from the 8N-A2080 Performante, with direct rhodium plated tellurium copper (male) and beryllium copper (female) contacts, in a brass + carbon fiber body.

7N Cu D.U.C.C. (Dia Ultra Crystallized Copper): a high-purity copper conductor for audio cables developed by Mitsubishi Cable Industries, with crystal grains grown to dozens of times the size of ordinary pure copper and aligned crystal orientation. Stressfree: ACROLINK's special annealing process that lets the conductor restore its structure through self-annealing.

Made in Japan

Specification

Model: 7N-A2400 Leggenda

Outer Diameter: 10mm

Conductor: D.U.C.C. Stressfree 7N Cu 0.26mm × 19 strands × 2 (white: right-hand twist / black: left-hand twist)

Insulation: High-polymer polyolefin resin

Inner Sheath: High-polymer polyolefin resin with amorphous powder

Shield: Copper foil tape + black UEW / silver-plated annealed copper braid

Outer Sheath: UV-resistant polyurethane

Conductor Resistance: 17mΩ/m

Capacitance: 69pF/m

Impedance: 110Ω (XLR)

RCA Connector: Hollow tellurium copper center contact, beryllium copper cold contact, thick direct rhodium plating, aluminum + carbon fiber body

XLR Connector: Tellurium copper (male) / beryllium copper (female), direct rhodium plating, brass + carbon fiber body

Sold as: Pair (L/R)

Japan domestic model
