ACROLINK 7N-PC4030 Purosangue CB POWER CABLE BULK per meter

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Bulk Cable Order Guide

Length: Quantity = cable length in meters.
For example, quantity “3” means one continuous 3-meter cable.
Cutting is available by whole meters only. Partial meters such as 0.5 m are not accepted.
If you would like the cable to be cut into multiple pieces, please place your order separately, or contact us before placing your order.

Description

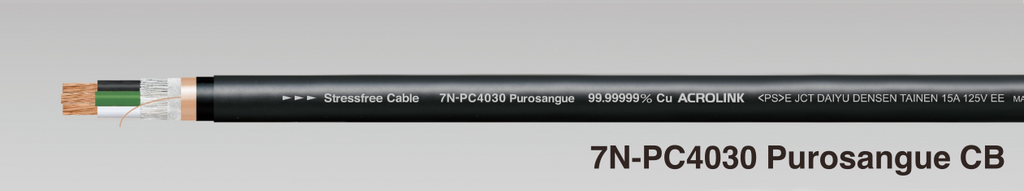

The ACROLINK 7N-PC4030 Purosangue CB is a high-grade bulk power cable using ACROLINK's 7N Cu D.U.C.C. Stressfree conductor in a heavy 5.4sq configuration.

7N Cu D.U.C.C. Stressfree Conductor

7N Cu D.U.C.C. Stressfree is a high-purity copper conductor developed for audio cable applications. D.U.C.C. stands for Dia Ultra Crystallized Copper, a material designed to enlarge the copper crystal grains and align the crystal direction for stable audio signal transmission.

By reducing crystal grain boundaries and optimizing the conductor structure, the material aims to minimize transmission loss, reduce distortion, and support a highly transparent and natural sound presentation.

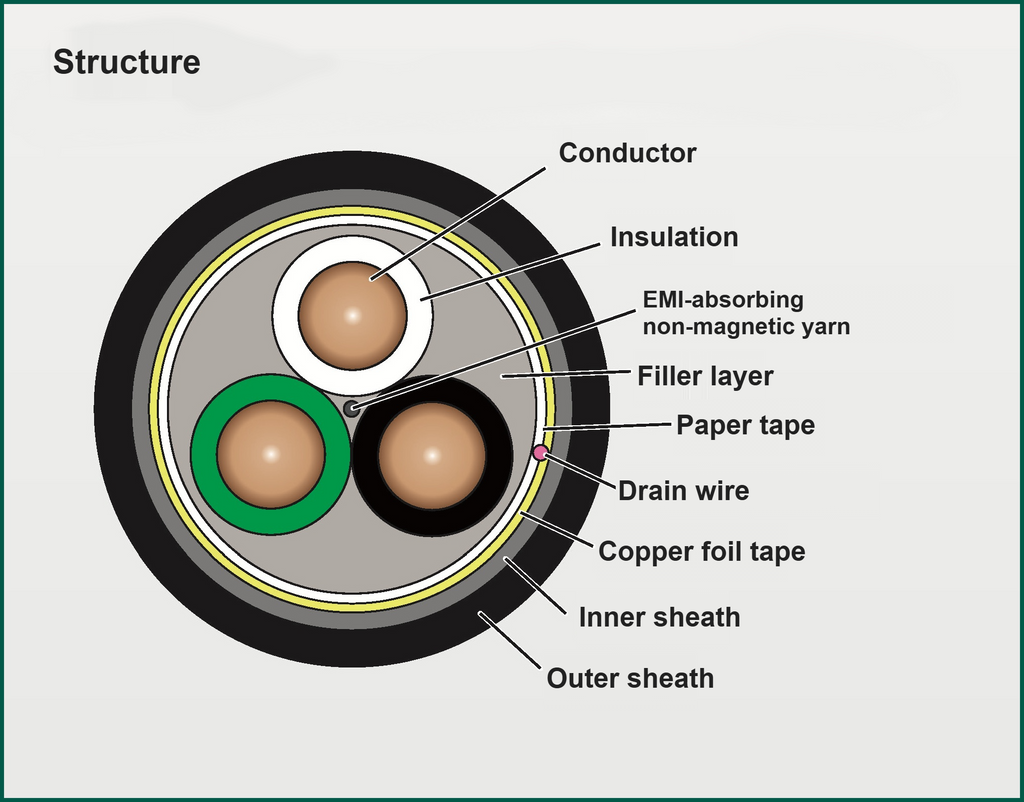

Silk Filler and Shielding

The cable combines polyolefin insulation, natural silk filler with electromagnetic-wave absorbing non-magnetic yarn, copper foil tape with a drain wire, and a tungsten / amorphous-powder inner sheath.

Made in Japan

Specification

Model: 7N-PC4030 Purosangue CB

Power Conductor: 7N Cu D.U.C.C. Stressfree 0.37mm × 50 strands, 5.4sq

Ground Conductor: 4N5 ultra-soft copper 0.37mm × 50 strands

Insulation: High-quality polyolefin resin

Filler: 100% silk and electromagnetic-wave absorbing non-magnetic yarn

Shield: Copper foil tape + drain wire

Inner Sheath: Polyolefin with tungsten powder and amorphous powder

Outer Sheath: Polyolefin resin

Conductor Resistance: 2.7mΩ/m

Outer Diameter: 14.7mm

Sales Unit: Bulk cable, per meter

Japan domestic model
