AET PSE-320HG IEC Connector HARD GOLD

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

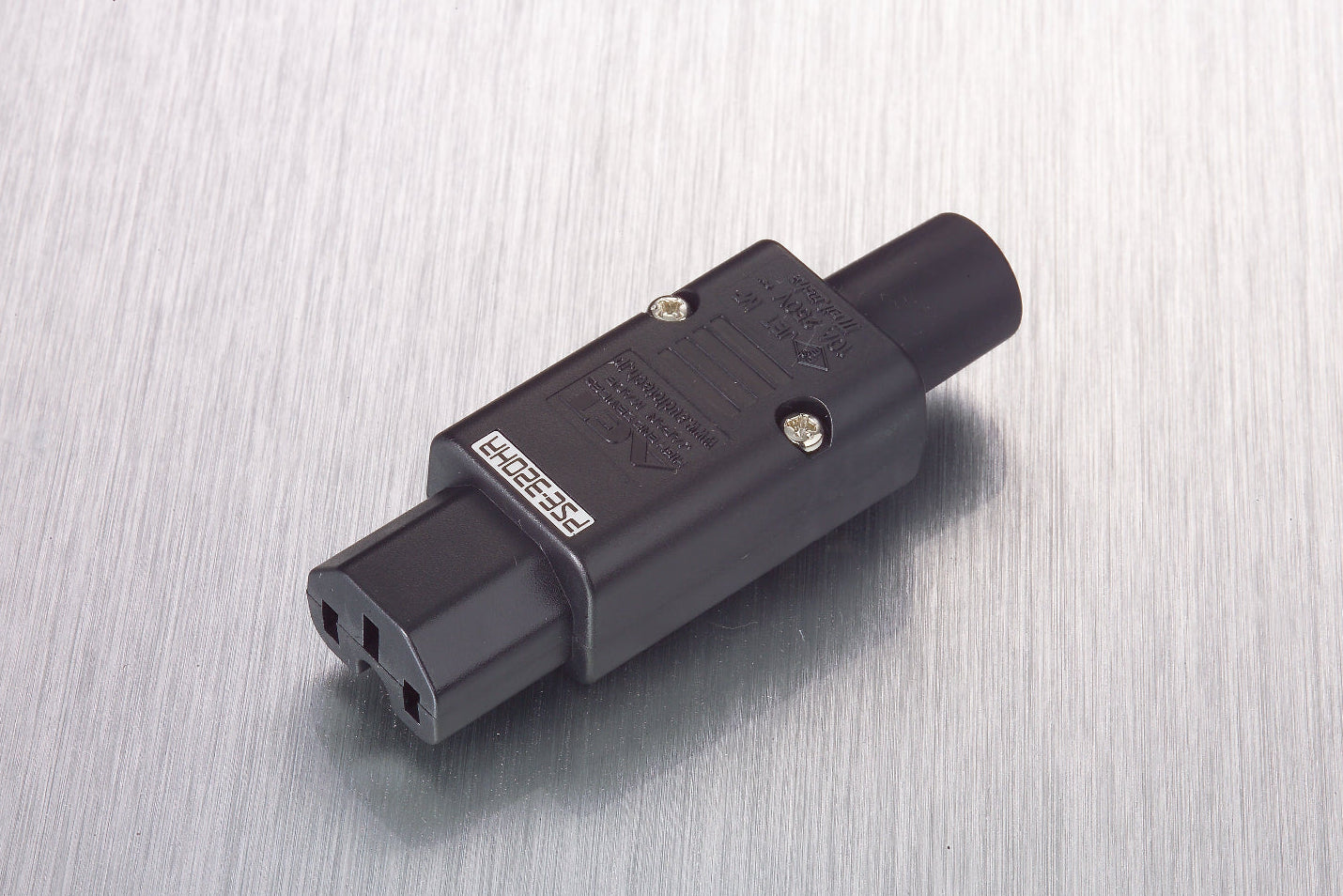

The AET PSE-320HG is an audio-grade IEC connector designed for custom power cable assembly, broadcast, recording studio, and high-quality audio applications.

It uses a high-tech domestic copper alloy with approximately 2.5 times the conductivity of phosphor bronze. The large-margin conductor section is designed to support stable current delivery and help reduce voltage drop under high-current conditions.

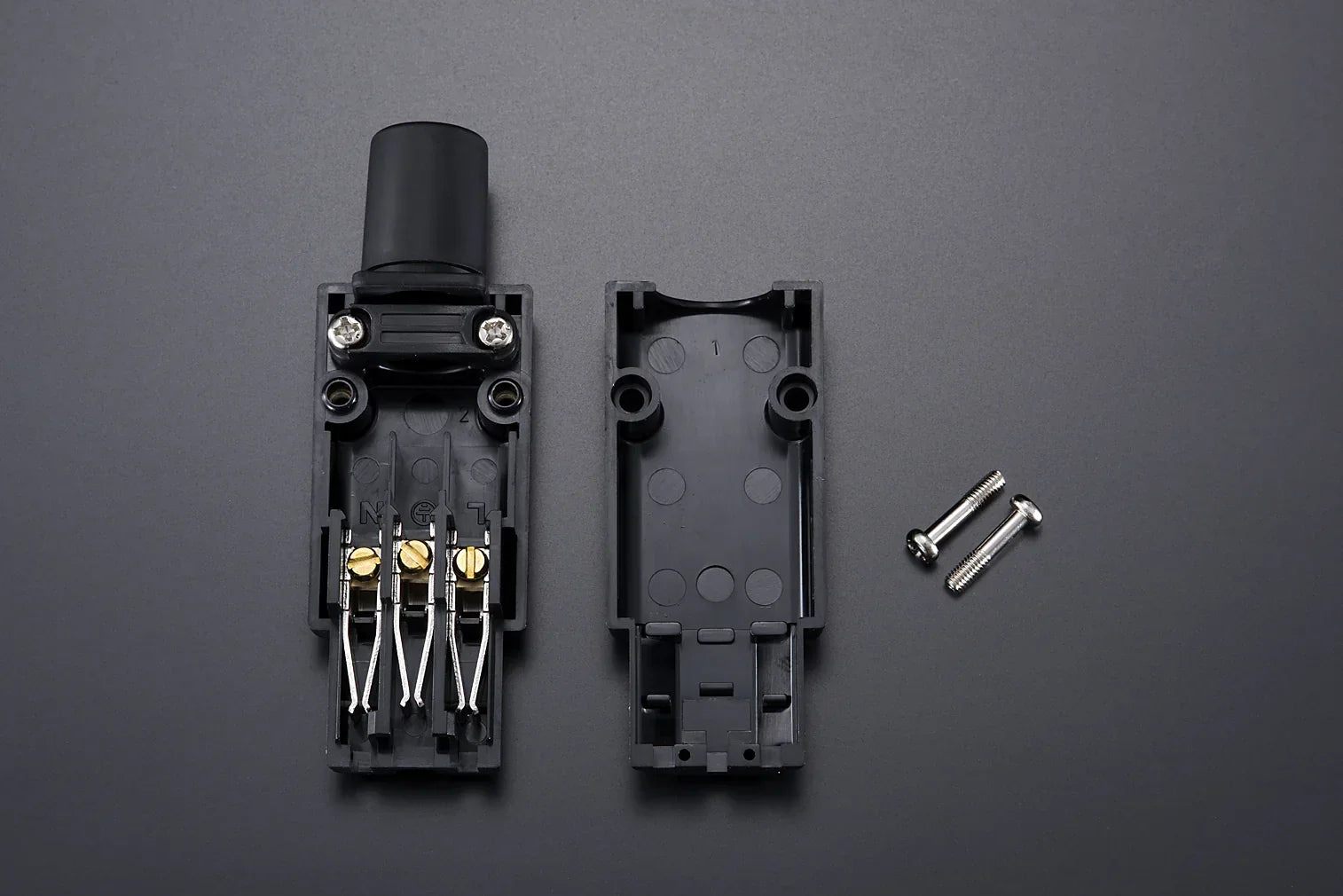

The body uses impact-resistant polycarbonate, selected for its strength and vibration resistance. The independent cord-grip structure helps hold thick shielded cables securely while reducing body distortion during cable support.

The clamp structure supports thick conductors up to 5.5mm² and the cord grip supports cable outer diameters up to 15mm. Crimp terminals are supported.

Made in Japan

Specification

Model: PSE-320HG

Product Type: IEC Connector

Conductor Material: Domestic copper alloy, approximately 2.5 times the conductivity of phosphor bronze

Body Material: Impact-resistant polycarbonate

Dimensions: 86mm × 29mm × 22mm

Surface Treatment: HG: Hard Gold

Compatible Cable Outer Diameter: up to 15mm

Maximum Conductor Size: up to 5.5mm²

Crimp Terminals: Supported

Rated Voltage and Current: 250V 10A

Certification: PSE certified, Japan domestic model

Note: Do not use contact cleaners or contact revival agents, as they may damage the plug body, connector body, or equipment terminals.
