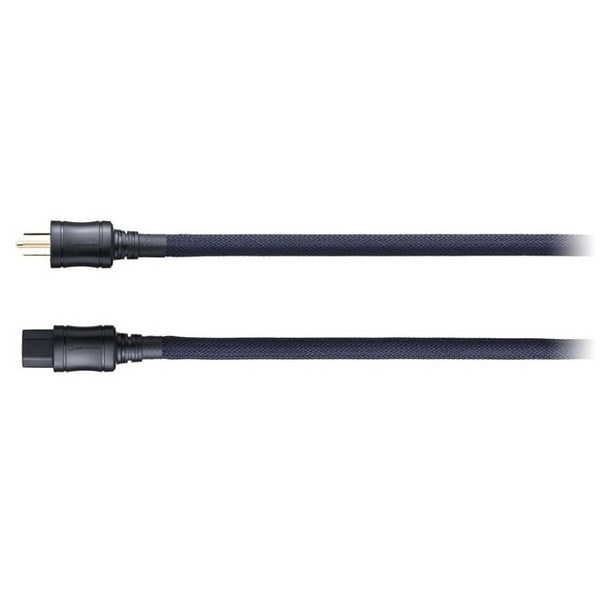

audio-technica AT-AC700 FLUAT Power Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The audio-technica AT-AC700 is an audio power cable from audio-technica's FLUAT Hi-Fi cable series, with a Japanese 3-pin grounded AC plug rated for 100V.

Conductor

The conductor is a triple hybrid of 6N-OFC (99.99997% oxygen-free copper), PCUHD (Pure Copper Ultra High Drawability, a registered trademark of Furukawa Electric) and HYPER OFC (4N oxygen-free copper made by dip forming, with annealing during drawing and an oxygen content of 10 ppm or less), in a 2 sq × 5-core structure. Hot and cold each use two bundled cores, giving 4 sq of conductor per leg.

Shield and Damping

Double shield of aluminum tape and a HYPER OFC braided shield. An elastomer damping material at the center of the cable reduces the influence of external vibration.

Heat Treatment

Heat Relieve, a high-temperature process, is applied to remove residual stress in the insulation and PVC jacket without damaging the conductor. According to audio-technica, this improves detail retrieval and separation without changing the tonal character.

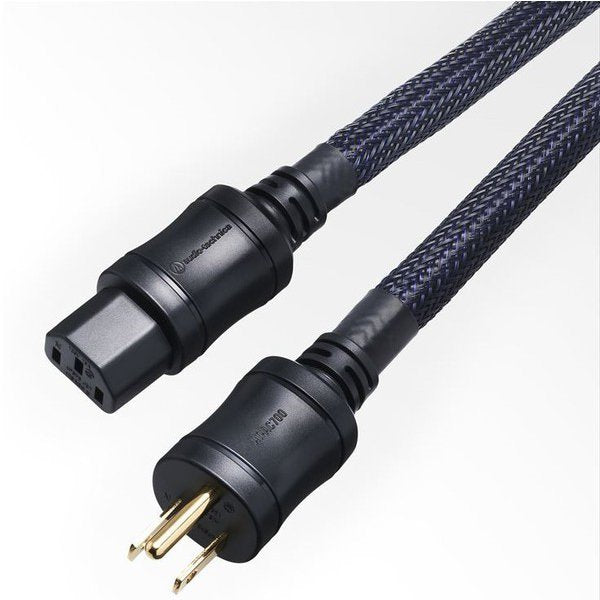

Plugs

Both the AC plug and the device-side connector are 3-pin grounded types with thick gold plating on all contacts. The resin-molded plug bodies hold the contact blades firmly, which according to audio-technica reduces contact play and cavity resonance inside the plug.

PCUHD is a registered trademark of Furukawa Electric Co., Ltd.

Specifications

Model: AT-AC700

Series: FLUAT

Type: Audio power cable

Length: 0.7m, 1.3m or 2.0m (select above)

Rated Voltage / Current: 100V, 50/60Hz / 15A

DC Resistance: 9.5 mΩ/m

Conductor: 6N-OFC + PCUHD + HYPER OFC triple hybrid, 2 sq × 5-core

Shield: Aluminum tape + HYPER OFC braid

AC Plug: Japanese 3-pin grounded, gold plated

Device-Side Connector: 3-pin grounded, gold plated

Japan domestic model
