KOJO Crystal E Virtual Earth Ground Terminal

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

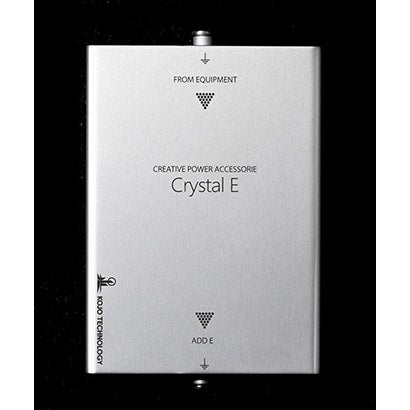

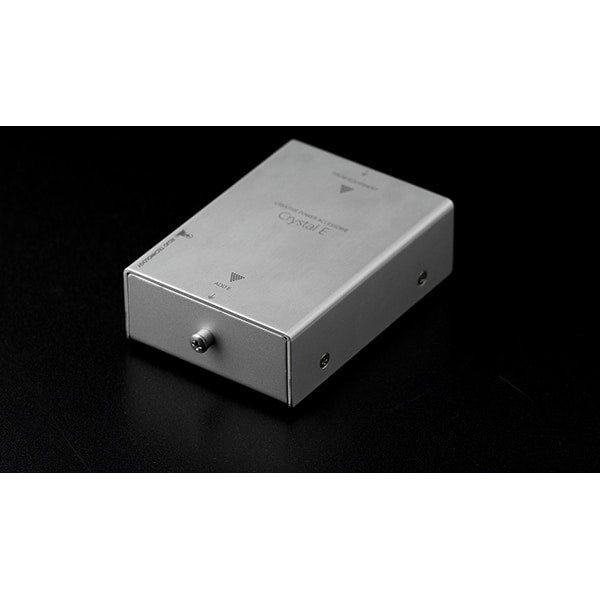

The KOJO Crystal E is a virtual earth (ground terminal) for audio systems, released as the successor to the Force bar EP. It follows KOJO's idea of "a nearby earth rather than a distant earth" and connects to the earth (GND) terminal of your audio equipment with the supplied cables.

Dissimilar-Metal Laminated Structure

Inside, eight metal plates (stainless steel / brass / copper / brass / copper / brass / copper / brass) are stacked like a heatsink, with a 0.5mm gap so the plates do not touch face to face. The surface area of the laminated section is 1.75 times that of the Force bar EP.

Chassis

The chassis is made of 2mm aluminum and 2mm steel.

Terminals and Connection

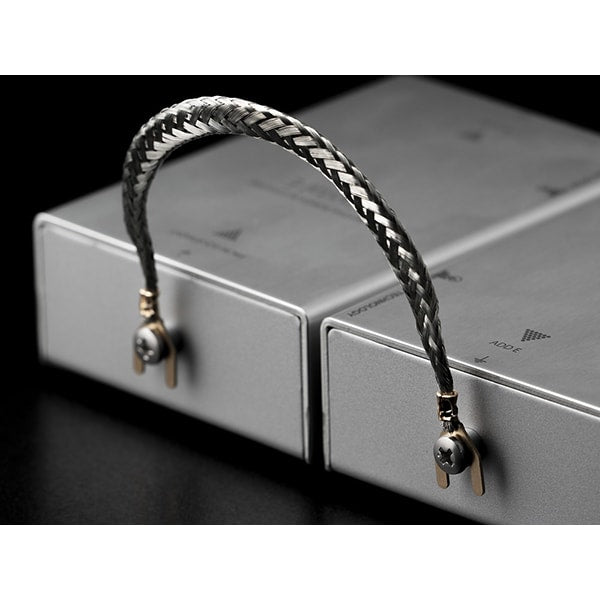

Two earth terminals with stainless steel (SUS) M4 binding screws: one connects to an audio component, and the other is used to add another Crystal E in series (tandem connection). KOJO advises against connecting two audio components to one Crystal E, as this creates multiple grounding.

Earth Cables

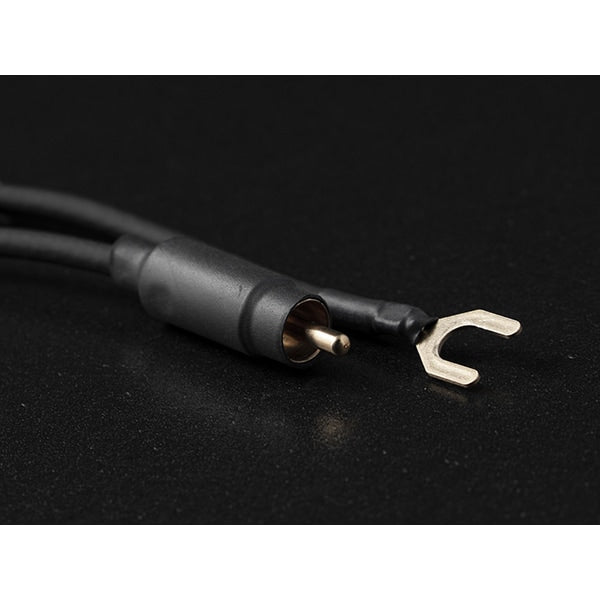

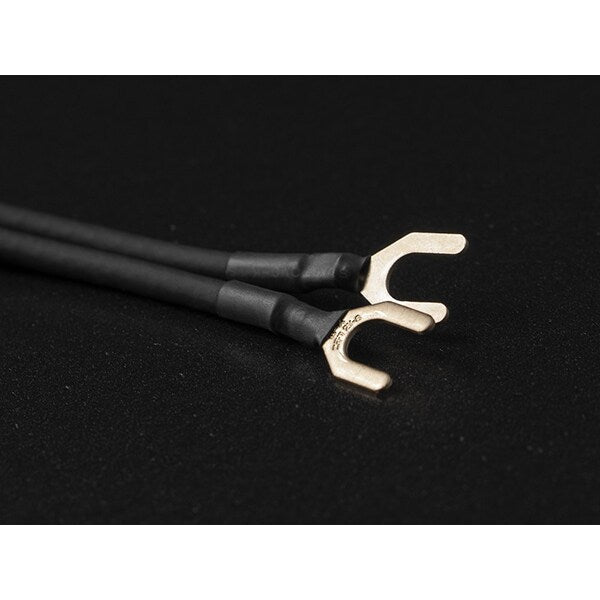

Two dedicated 1.2m earth cables are supplied: RCA plug to Y-terminal, and Y-terminal to Y-terminal. They use coaxial wire, which KOJO chose for its good high-frequency characteristics, with gold-plated terminals.

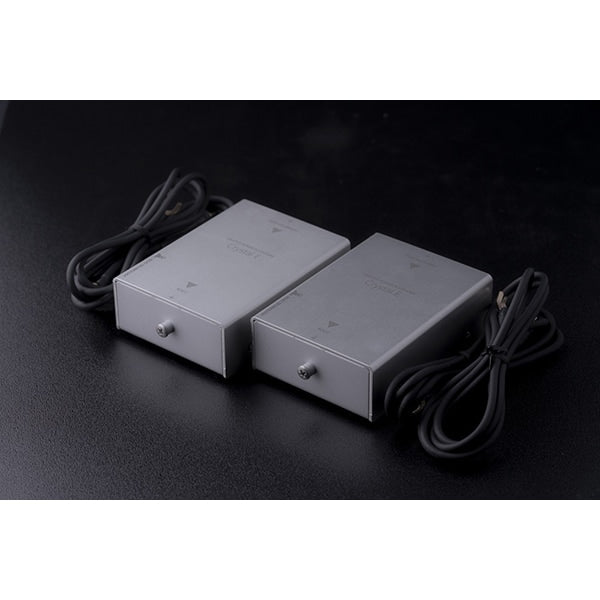

The Set of 2 packages two Crystal E units in one box, for tandem connection or for use with each of the left and right speakers.

Made in Japan

Specification

Model: Crystal E

Earth Terminals: M4 × 2 (SUS binding screws)

Internal Structure: 8-layer laminate of stainless steel, brass and copper

Chassis: 2mm aluminum / 2mm steel

Dimensions: W80 × H35 × D111mm (excluding terminals and protrusions)

Weight: Approx. 775g (per unit)

Accessories (Crystal E): Earth cable × 2 (RCA plug – Y-terminal, Y-terminal – Y-terminal, 1.2m, gold-plated; Y-terminal size M6, recommended screw size M4–M6)

Japan domestic model
