KORG DS-DAC-10R 1-Bit USB DAC/ADC with Phono Input and DSD Recording

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

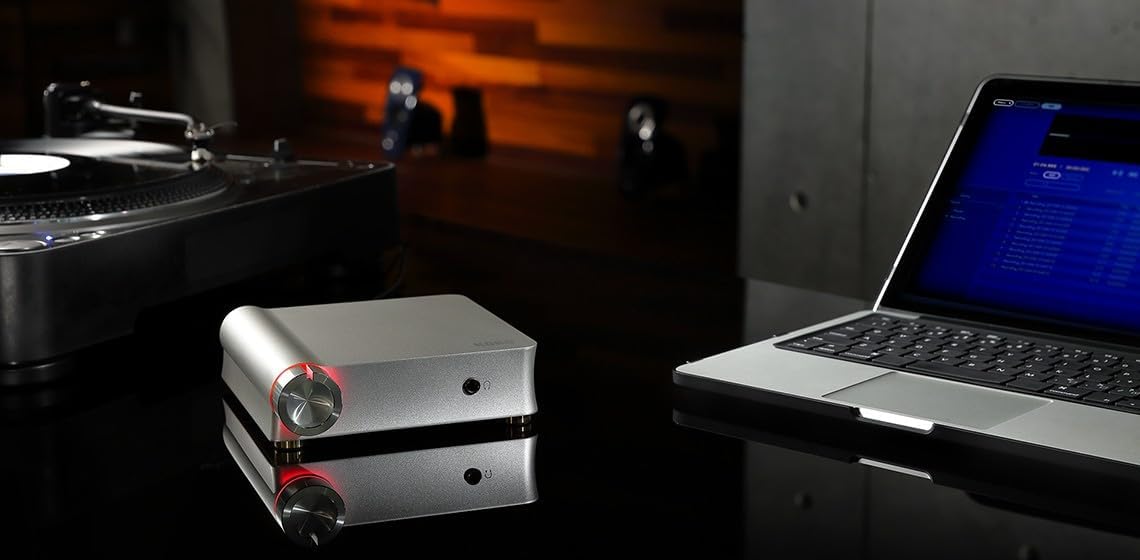

The KORG DS-DAC-10R is a 1-bit USB DAC that plays DSD and PCM files natively through its RCA line outputs and a front-panel 6.3mm headphone jack. It is also a recording interface: connect a turntable to the built-in phono input, or a line-level source such as a cassette deck to the line input, and record to your computer in DSD (5.6MHz or 2.8MHz) or PCM (up to 192kHz/24-bit).

Native DSD and PCM Playback

DSD files play natively at 2.8224MHz and 5.6448MHz, and PCM plays at 44.1kHz to 192kHz (16/24-bit). The DA converter is a Cirrus Logic CS4398. The unit is rated at 105dB S/N ratio (typical, 20Hz to 20kHz, IHF-A) and 0.005% THD+N (typical, 20Hz to 20kHz).

Headphone and Line Outputs

The front-panel 6.3mm stereo headphone jack delivers up to 70mW + 70mW into 32 ohms and accepts loads of 16 ohms or more. A pair of RCA unbalanced line outputs connects the unit to an amplifier or powered speakers.

Record Vinyl and Line Sources in DSD

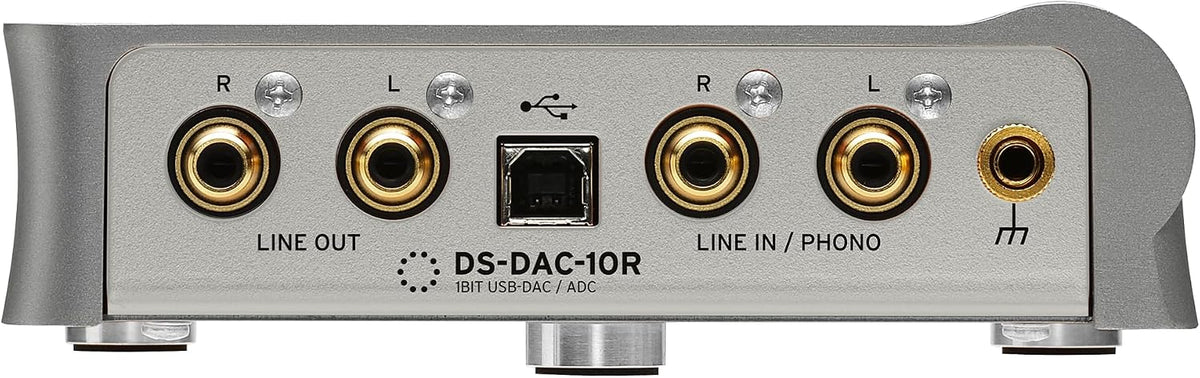

The phono input accepts a turntable directly and has a ground terminal. The line input takes line-level sources such as cassette decks. Recording is handled on your computer with KORG's AudioGate 4 software, which also controls the input selection (switched by relays inside the unit).

The AD converter is a Texas Instruments PCM4202, the same chip used in KORG's MR-2000S recorder. The phono preamp uses a Texas Instruments OPA1662.

DSD Phono Equalizer

A phono equalizer is built into AudioGate 4. It supports the RIAA curve plus five other playback curves, and the equalization can be applied at the time of recording or after recording.

Build and Operation

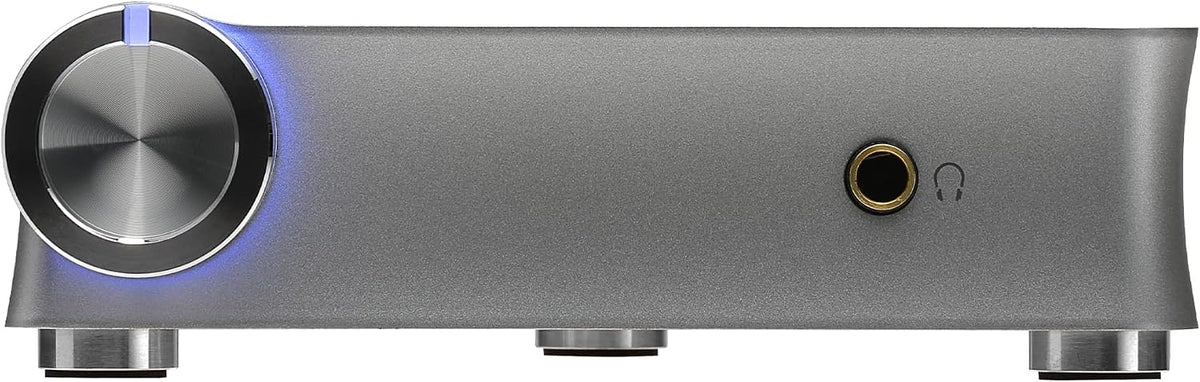

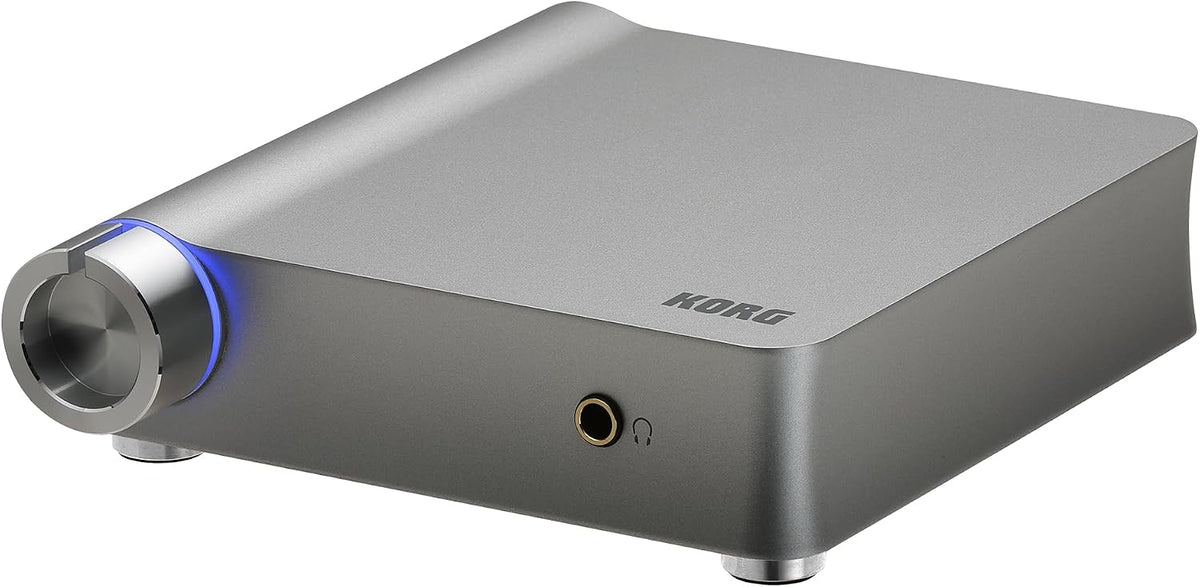

The die-cast body keeps the front panel minimal, with only a headphone jack and a volume knob. An LED ring on the volume knob shows the sample rate and the recording status. The unit is powered over USB (5V, 500mA), so no AC adapter is needed.

With the iAudioGate app, an Apple connection kit and a powered USB hub, it can also be used with an iPhone. The iAudioGate app does not include the phono equalizer.

Specification

Model: DS-DAC-10R

Type: 1-bit USB DAC / ADC, 2 channels

USB Input (playback): DSD 2.8224MHz / 5.6448MHz (1-bit), PCM 44.1kHz to 192kHz (16/24-bit)

Recording: DSD 2.8MHz / 5.6MHz, PCM up to 192kHz/24-bit

Interface: USB 2.0 High Speed, Type B (ASIO 2.1, WDM, Core Audio)

DA Converter: Cirrus Logic CS4398

AD Converter: Texas Instruments PCM4202

Phono Preamp: Texas Instruments OPA1662

Frequency Response: 10Hz to 20kHz +/-1dB (44.1kHz / 48kHz), 10Hz to 40kHz +/-1dB

S/N Ratio: 105dB (typical, 20Hz to 20kHz, IHF-A)

THD+N: 0.005% (typical, 20Hz to 20kHz)

LINE OUT L/R: RCA, unbalanced, load impedance 10k ohms or more

LINE IN L/R: RCA, input impedance 47k ohms

PHONO L/R: RCA, input impedance 50k ohms, nominal 5mVrms

PHONES: 6.3mm stereo jack, load impedance 16 ohms or more, maximum output 70mW + 70mW (32 ohms)

Power: USB bus power (5V, 500mA), maximum 2.5W

Dimensions: 155 x 184 x 49mm (including protrusions)

Weight: Approx. 1.1kg

Included: USB cable

Japan domestic model
