NOBUNAGA Labs ECLIPSE 2-pin Earphone Cable NLC-ECS

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

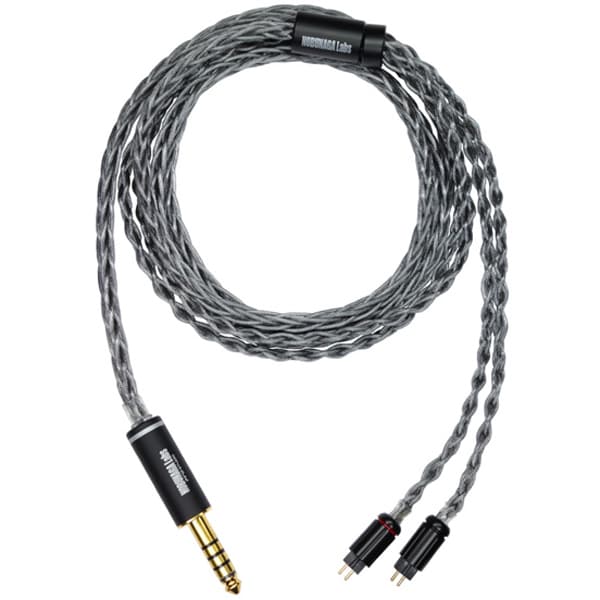

The NOBUNAGA Labs ECLIPSE (NLC-ECS) is an 8-core balanced earphone cable from the COMBINE series, with custom IEM 2-pin (0.78mm) connectors and a 4.4mm 5-pole balanced plug.

Conductor

8-core copper-silver alloy conductor made by combining high-purity oxygen-free copper with silver in NOBUNAGA Labs' own ratio, with 133 strands of 0.03mm per core, for a clear, detailed and wide-range sound. Balanced 8-core braid with no joint at the branch point and an even braid pitch. The jacket is flexible, lightweight PVC.

Plugs and Construction

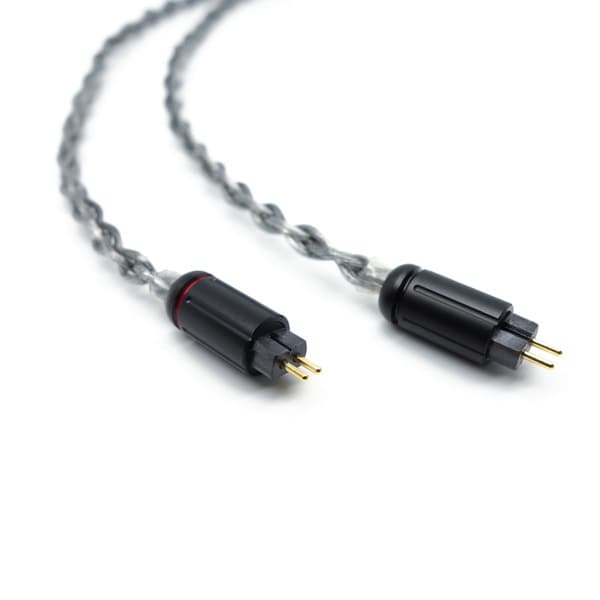

24K gold-plated custom IEM 2-pin connectors with a molded shell (L black / R red) and a gold-plated 4.4mm 5-pole straight plug with a matte black shell. No ear-hook wire. Cable slider included. The Y-splitter and slider are black anodized aluminum.

Specifications

Model: NLC-ECS

Length: 1.2m

Conductor: Copper-silver alloy, 8-core, 133 strands of 0.03mm per core

Jacket: PVC

Earphone-Side Connector: Custom IEM 2-pin (0.78mm) (24K gold-plated)

Source-Side Plug: 4.4mm 5-pole balanced straight

Impedance: 0.2Ω or less

Cable Slider: Included

Japan domestic model

Compatible Earphone Models

FAudio: Mezoo, Dark Sky, Spring, Chorus

final: A5000, A4000, A3000

RAPTGO: HOOK-X, Bridge

THIEAUDIO: V16 DIVINITY, Prestige, Monarch MKIII, Oracle MKII, Hype 2, Legacy 4, Legacy 2, Elixir

qdc: WHITE TIGER, SUPERIOR

Unique Melody: MEST MKIII CF, Maven Pro, Maslow, MEXT, Mini MEST, 3D Terminator Grain, 2HT
