OYAIDE ACROSS 3000 Speaker Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE ACROSS 3000 is the core speaker cable of Oyaide's lineup, with cumulative shipments of the ACROSS series exceeding 100,000 meters. This ready-made version is terminated with Oyaide's SGBN banana plugs (ACROSS 3000 SGB) or SGSL Y-lugs (ACROSS 3000 SGY), and is tuned with Oyaide's NRF-005T noise suppression tape.

Conductor

The 3.0sq conductor (37 strands) uses Oyaide's precision 102 SSC copper with the patented 3E twist structure, which combines strands of three different diameters to minimize gaps and keep the conductor perfectly round, stabilizing the electrical characteristics.

C.I.S Structure

Oyaide's original cross-insulated stabilizer (C.I.S) structure supports the conductor at points rather than surfaces. The air layers act as a damper and greatly reduce capacitance. The cross insulator is high-polymer polyolefin with a dielectric constant about 1/4 that of PVC, and the outer sheath is an audio-grade halogen-free sheath developed by Furukawa Electric.

Plugs

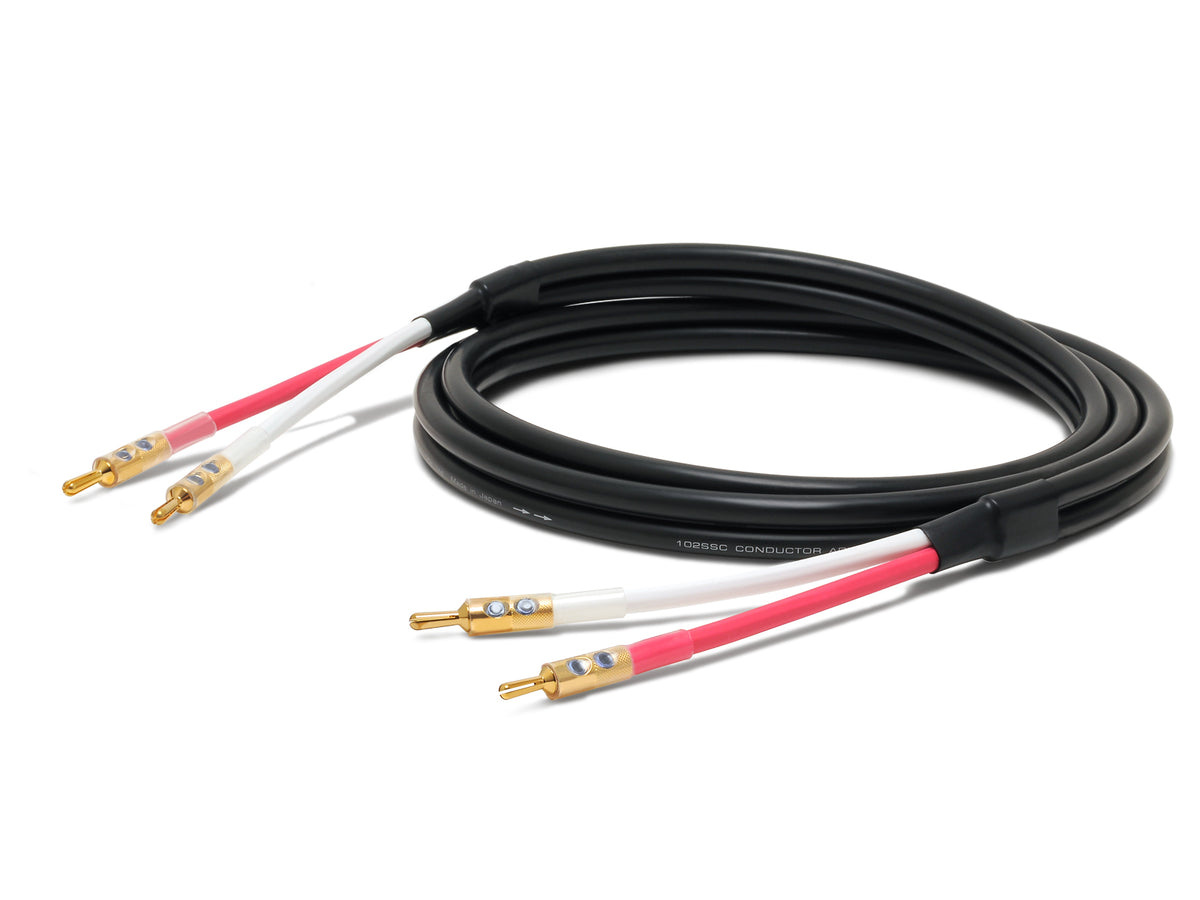

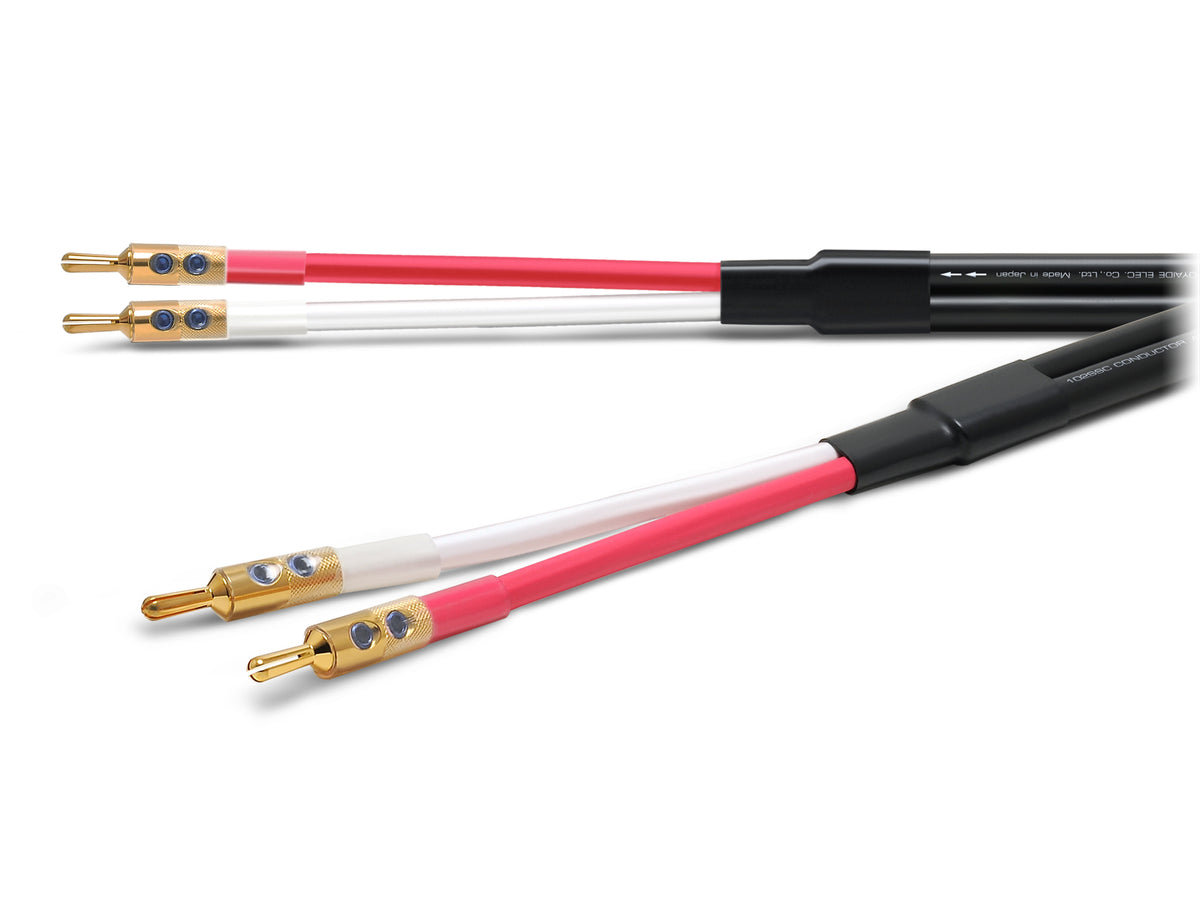

SGB (banana plug): 8 SGBN banana plugs, CNC-machined from springy phosphor bronze, hand-buffed and plated with pure silver underlayer + thick 24K gold. The tip diameter is designed around WBT speaker terminals and verified with other terminals. Each plug uses two 5mm stainless steel set screws for secure contact.

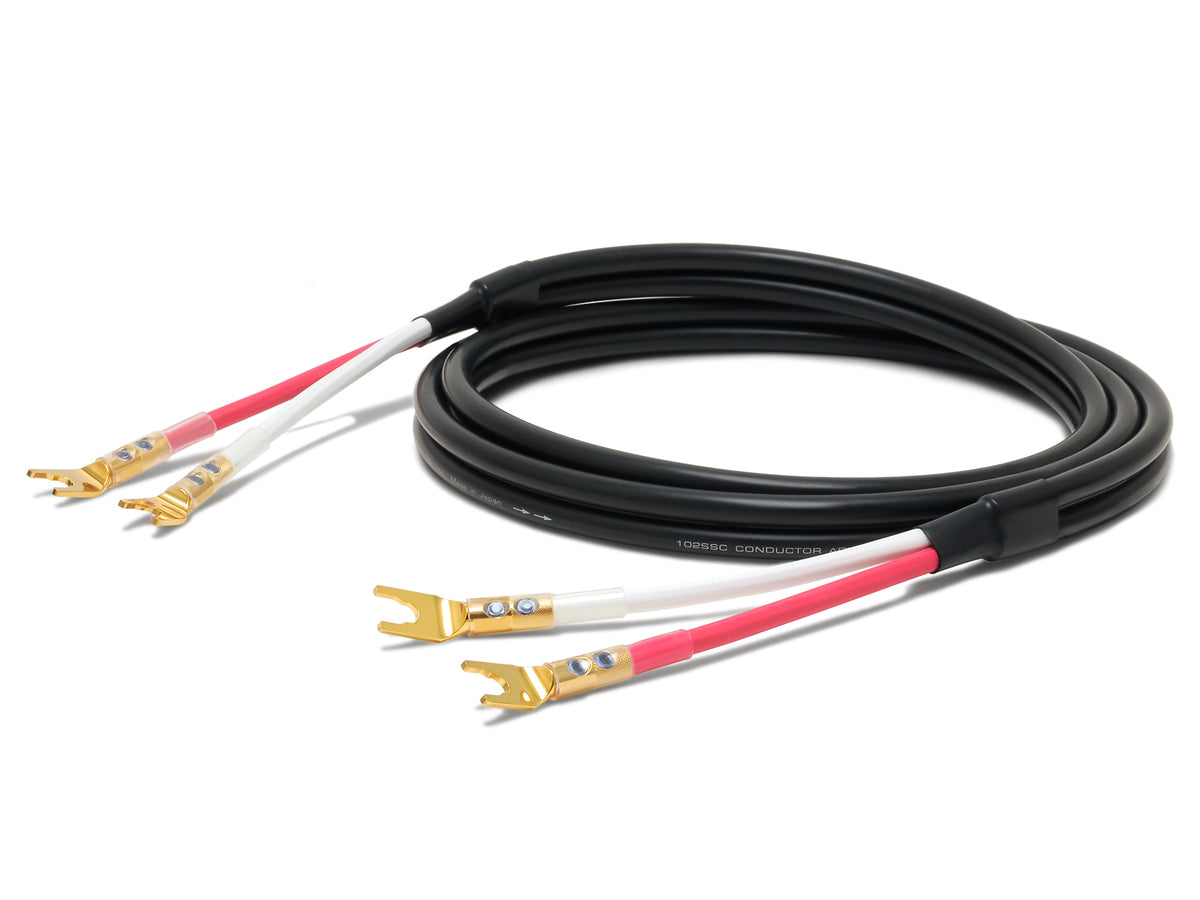

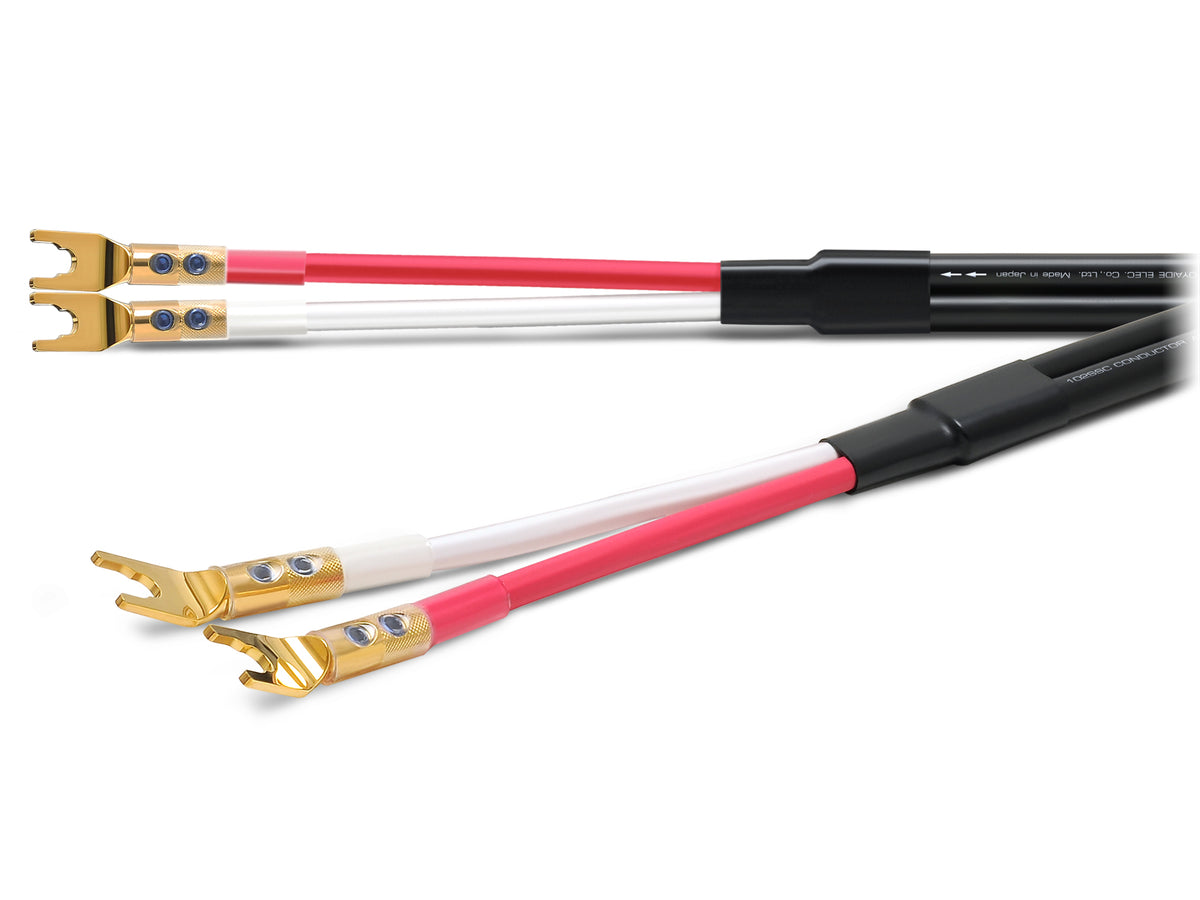

SGY (Y-lug): 8 SGSL Y-lugs made of RoHS-compliant brass, plated with pure silver underlayer + thick 24K gold.

The plugs are fastened with torque-controlled screws and sealed with adhesive-lined cross-linked polyolefin heat-shrink tubing to prevent oxidation.

NRF-005T Noise Suppression Tape

Oyaide's non-magnetic NRF-005T tape, made with Asahi Kasei's PULSHUT®, is applied at the speaker-side split to suppress electric-field noise by converting it into Joule heat. Because the cable is tuned with this tape, connect it so that the signal flows in the direction of the arrows printed on the cable.

102 SSC: Oyaide's precision copper conductor. Only virgin copper conforming to JIS C1011, with no recycled copper, is used. Surface impurities are removed 100% by peeling, the wire is drawn with natural diamond dies to a tolerance of ±1μm, and it is annealed twice. Conductivity: 102.3% IACS. PULSHUT® is a registered trademark of Asahi Kasei Corporation.

Made in Japan

Specification

Model: ACROSS 3000 SGB / ACROSS 3000 SGY

Cable: ACROSS 3000

Cable Structure: C.I.S (Cross Insulated Stabilizer)

Conductor: 102 SSC

Conductor Size: 3.0sq (37 strands / 3E twist)

Insulation (cross): High-polymer polyolefin

Insulation (outer): Polyethylene

Outer Sheath: Audio-grade halogen-free sheath

Outer Dimensions: 9.2 × 18.5mm

Conductor Resistance: 0.63Ω/100m (at 20°C)

Capacitance: 34pF/m (1kHz)

Termination (SGB): SGBN banana plug (phosphor bronze, pure silver underlayer / thick 24K gold plating)

Termination (SGY): SGSL Y-lug (RoHS brass, pure silver underlayer / thick 24K gold plating)

Sold as: Pair (L/R)

Japan domestic model
