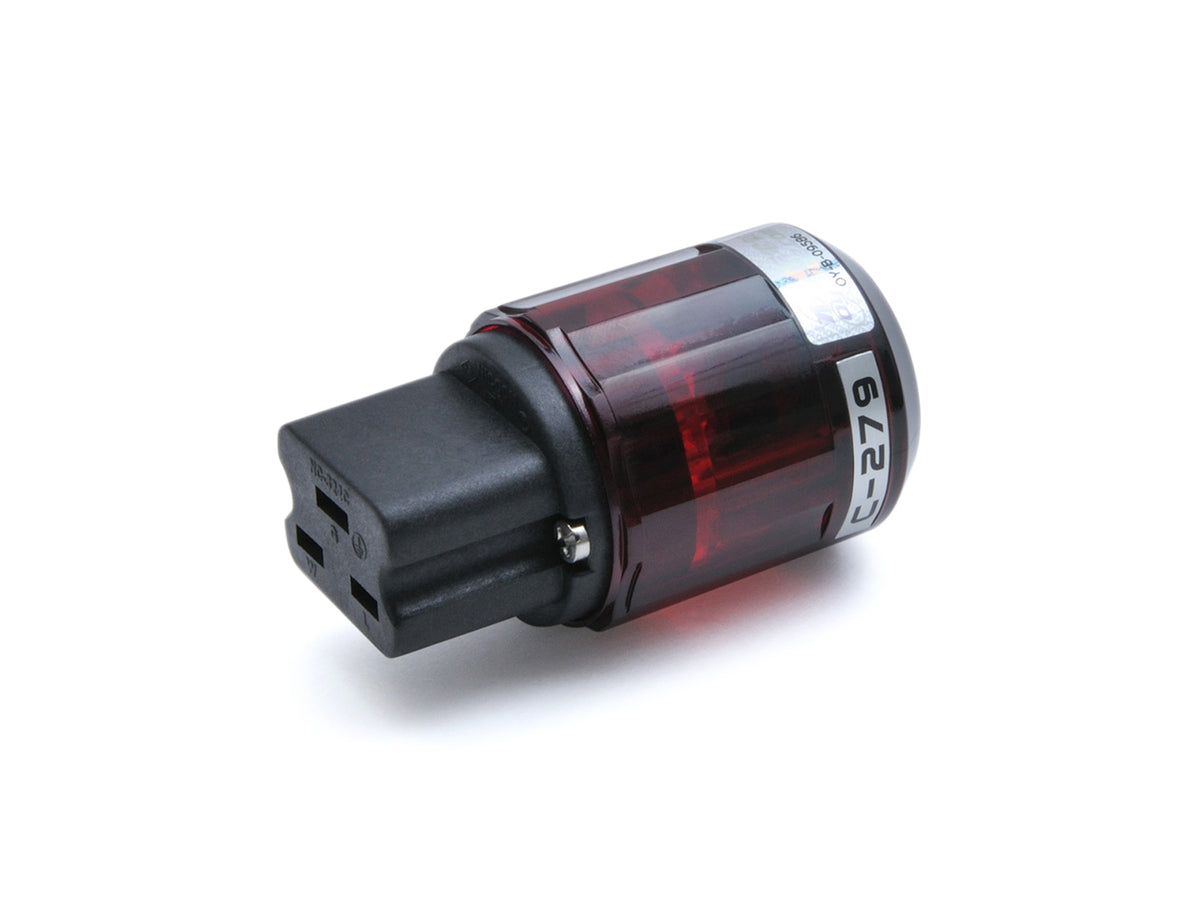

OYAIDE C-279 IEC Connector 20A 24K GOLD

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE C-279 is an IEC connector designed for 20A IEC inlets, with phosphor bronze electrodes plated with thick 24K gold.

Electrodes

The blade-receiving part is 1.4mm thick phosphor bronze for a firm hold, with a plug holding force of 7 kg or more (a normal load is 3 to 5 kg). The blanks are barrel-polished, hand buffed one by one and directly plated with thick 24K gold (2.0μ) to a mirror finish. The blade-to-cable pull strength is 30 kg or more.

Body and Cover

The body is PBT with 30% glass fiber, with custom stainless steel screws. The cover is thick polycarbonate, chosen for strength and hardness.

Cable Clamp

Accepts cable outer diameters from 6.0mm to 16.0mm. The maximum conductor size is AWG10 (5.5sq), or 10sq in total when two 5.5sq cables are used.

Each connector is shipped in an original can case with a serial-numbered hologram seal.

Made in Japan

Specification

Model: C-279

Electrode: Phosphor bronze

Plating: Thick 24K gold (2.0μ)

Body: PBT + 30% Glass Fiber

Cover: Polycarbonate

Cable Diameter: 6.0mm-16.0mm

Maximum Conductor Size: AWG10 (5.5sq / mm²) per core

Rated Voltage and Current: 125V 20A, PSE certified, Japan domestic model
