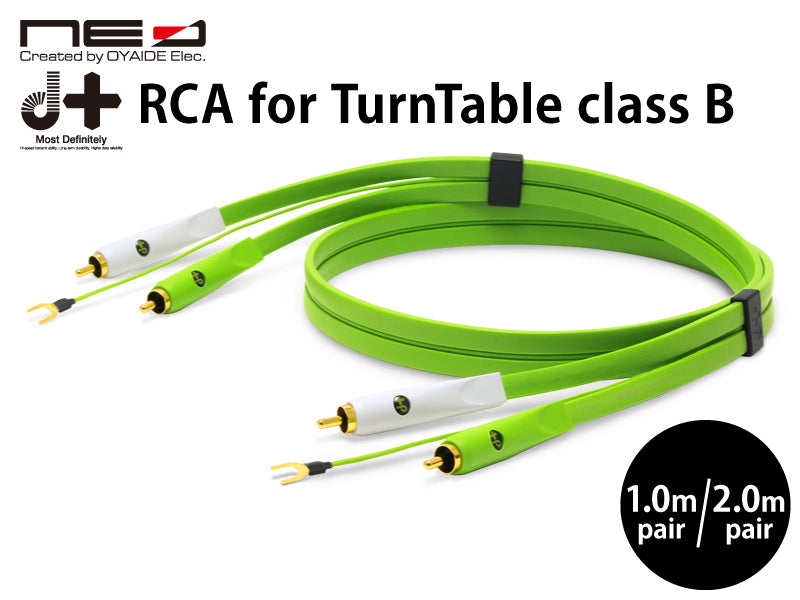

OYAIDE d+ RCA for TurnTable classB Phono RCA Cable Pair with Ground Wire

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE d+ RCA for TurnTable classB (NEO by Oyaide) is an RCA cable for turntables with an integrated ground wire. According to OYAIDE, it was designed as a higher-spec, lower-cost version of the PA-2075 RR V2 turntable cable, and it is aimed at DJ use. MM cartridges are recommended.

Construction

A single-core shielded design: two shielded cables run in parallel with the ground wire between them. The conductor is high-purity oxygen-free copper (OFC), 20 AWG, with reverse concentric stranding. Insulation is HDPE, the shield is an OFC braid, and the sheath is PVC. The ground wire is OFC, 23 AWG.

Flat Design

The internal shielding stabilizes the conductor and insulation and reduces noise, and the flat design is meant to limit changes in signal loss, impedance and capacitance when the cable is bent. The green-and-white d+ classB look is easy to spot in dark club or DJ booth settings.

Plugs

The RCA plugs and the Y-terminal (spade) for the ground wire are 24K gold plated.

Specification

Model: d+ RCA for TurnTable classB

Length: 1.0m pair / 2.0m pair

Structure: Single-core shielded, two cables in parallel with a ground wire between them

Conductor: OFC, 20 AWG (21/0.18mm), reverse concentric stranding

Insulation: HDPE

Shield: OFC braided shield (16/8/0.08mm)

Sheath: PVC

Ground Wire: OFC, 23 AWG (12/0.18mm)

Plug / Y-terminal: 24K gold plating

Capacitance: 160 pF/m

Sold as: Pair (L/R)

Japan domestic model
