OYAIDE OCB-1 DXs II Power Strip 4 Outlets

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

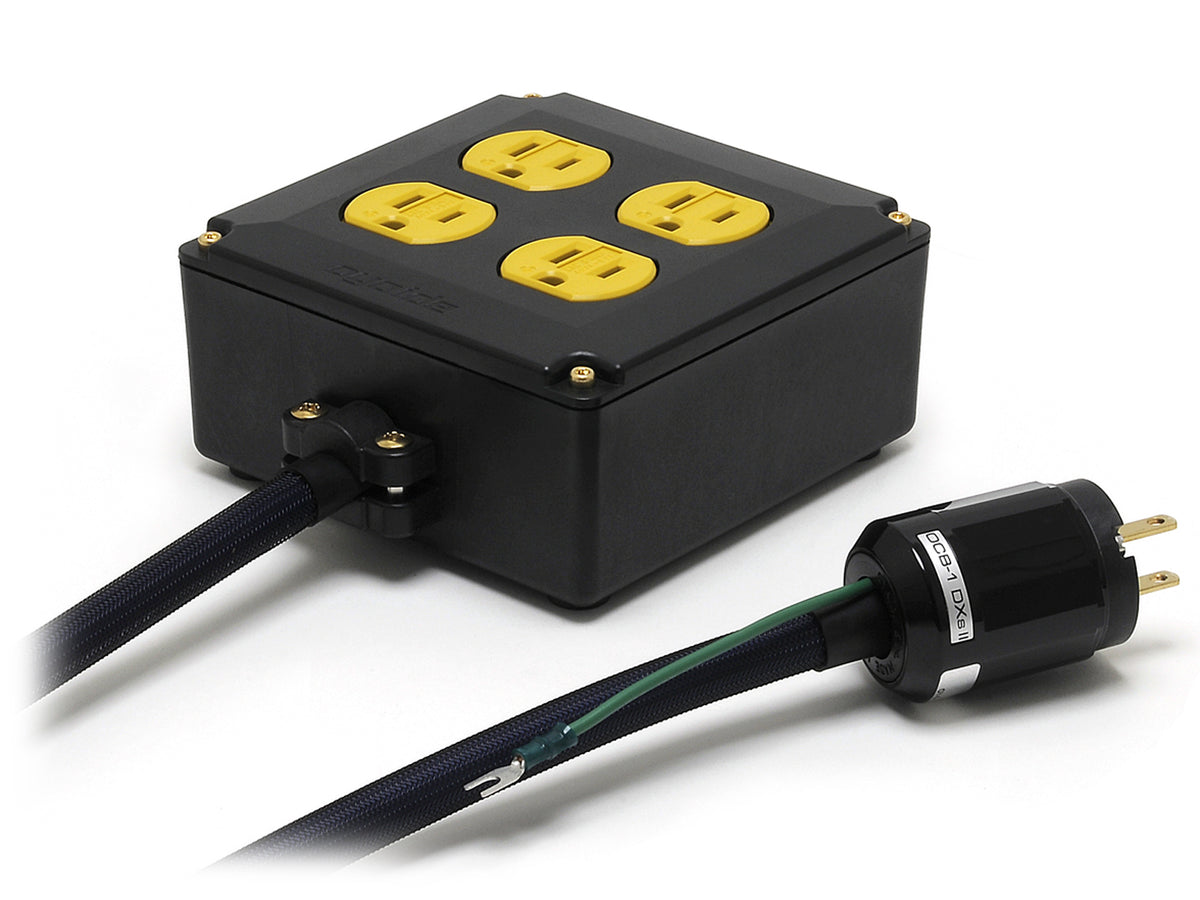

The OYAIDE OCB-1 DXs II is the latest version of the OCB-1 (Oyaide Concent Box No.1), Oyaide's long-running Japanese-made audio power strip, ideal for desktop to mid-size audio systems.

Cable

The attached L/i50 OFC II cable uses Japanese C1011 OFC (Class 1 OFC) conductors in Oyaide's 4-core star-quad structure, in which diagonally opposite conductors are twisted together to cancel radiated noise. Insulation and sheath are flame-retardant polyolefin, with a clear PVC coating that blocks external noise and protects against damage. An earth wire is added for 3-pin audio equipment, and the colored outer sleeve adds damping.

Plug and Outlets

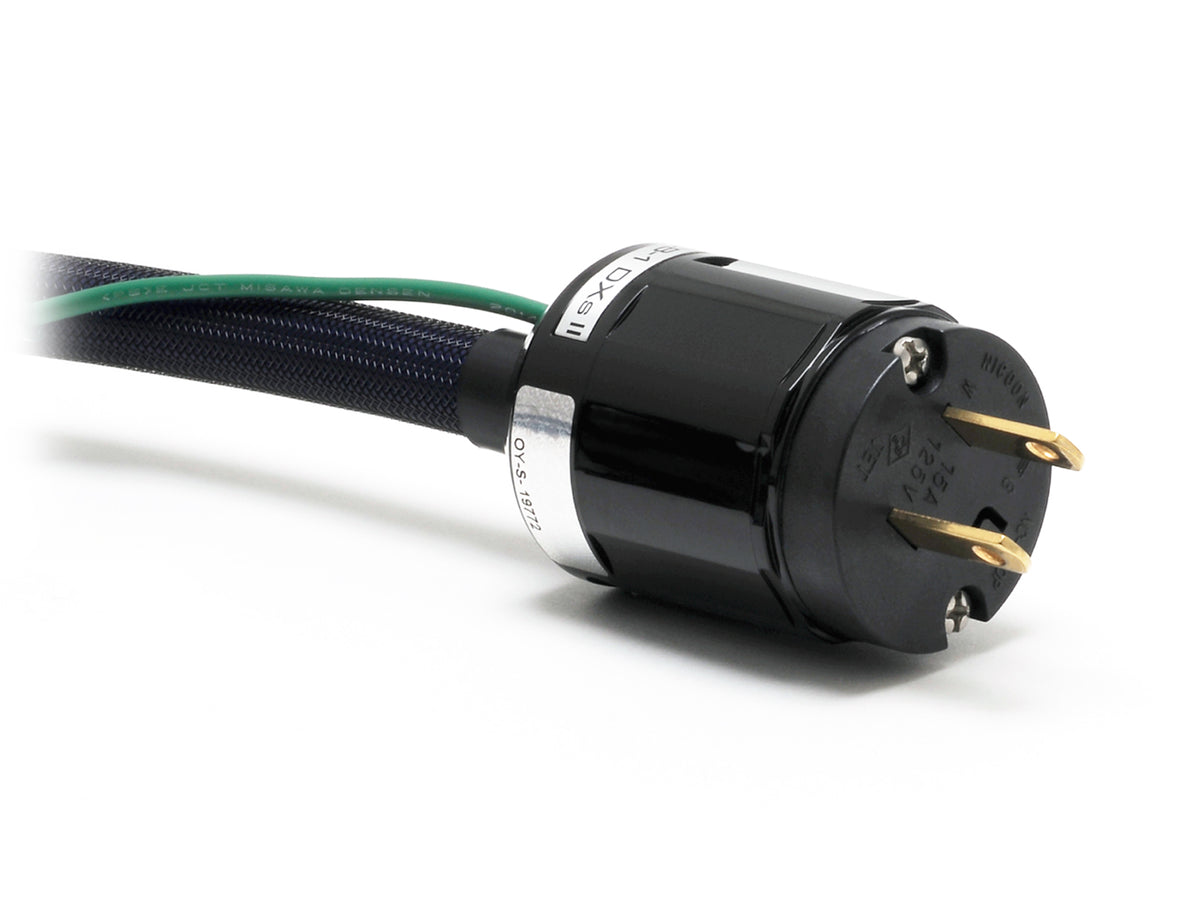

The plug is Oyaide's standard P-029, modified to a 2-pin type for household use. The outlets are Oyaide's Japanese-made SWO-DX/ULTIMO in a dedicated yellow color, with phosphor bronze contacts plated with silver + rhodium. Internal wiring uses Oyaide's precision 102 SSC conductor (2.5sq).

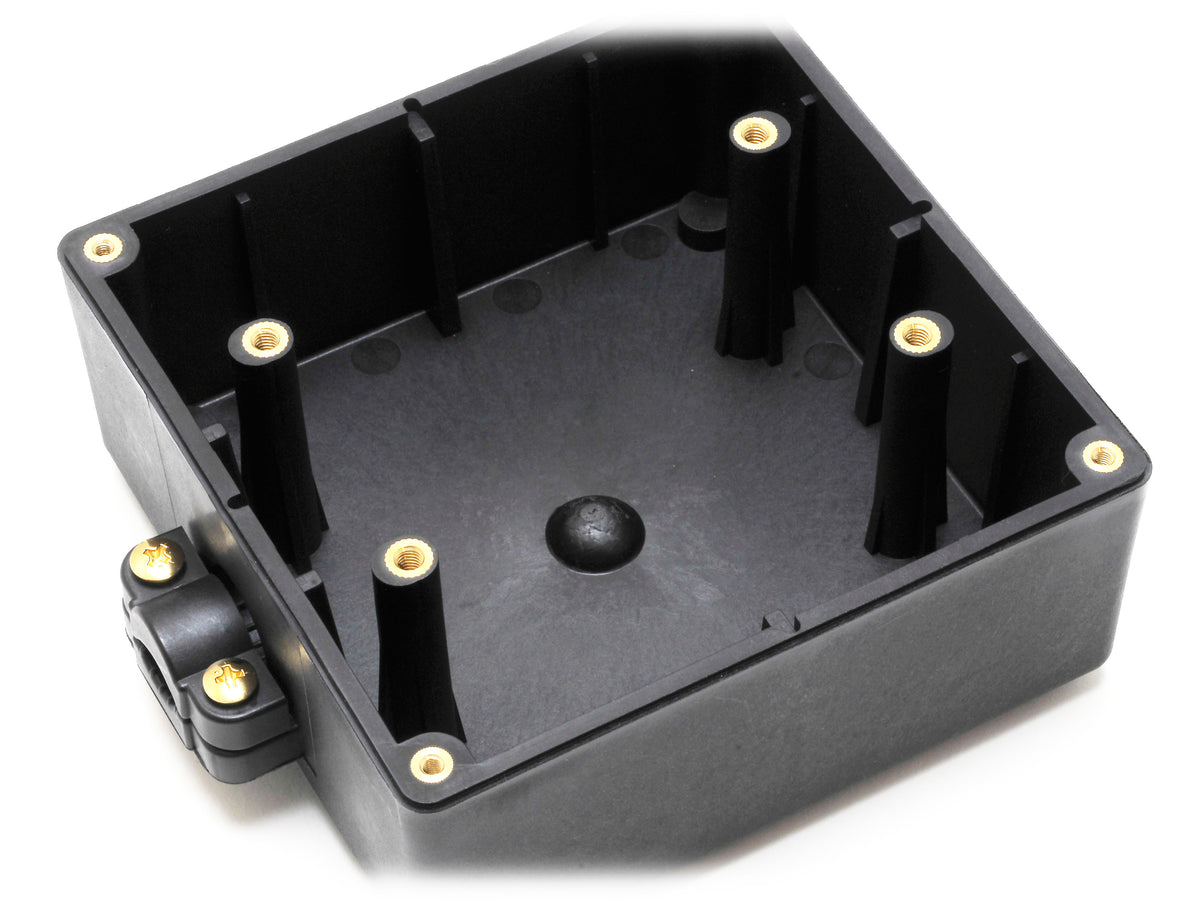

PBT-GF30 Outlet Box

The box is made of PBT engineering plastic with 30% glass fiber, which has more than twice the tensile and impact strength of unfilled PBT and high dimensional stability. It has a monocoque structure, 4mm thick walls (over 1.4 times a typical 2.8mm PVC box), carbon added for EMI consideration, and 13mm feet to minimize contact with the floor and suppress resonance. Optional OSP-SC / OSP-SS spikes, the OCB-BS granite base or the INS-BS insulator base (all sold separately) can be screwed to the M4 holes at the bottom.

Made in Japan

Specification

Model: OCB-1 DXs II

Outlets: 4 (2 duplex outlets), Oyaide SWO-DX/ULTIMO (yellow)

Cable: L/i50 OFC II, 2.0m

Conductor: Japanese C1011 OFC

Conductor Size: 2.0sq × 4 cores + earth wire (0.75sq)

Insulation: Flame-retardant polyolefin

Filler: Staple fiber yarn + paper

Sheath: Flame-retardant polyolefin

Outermost Sheath: Clear PVC

Internal Wiring: 102 SSC 2.5sq

Outlet Box: PBT with 30% glass fiber

Plug: Oyaide P-029 (2-pin type, Japan / US NEMA 1-15 compatible), with separate earth wire

Weight: 1,045g

Rating: 125V / 15A

PSE certified, Japan domestic model
