OYAIDE OCB-1 EXs II Power Strip 4 Outlets

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

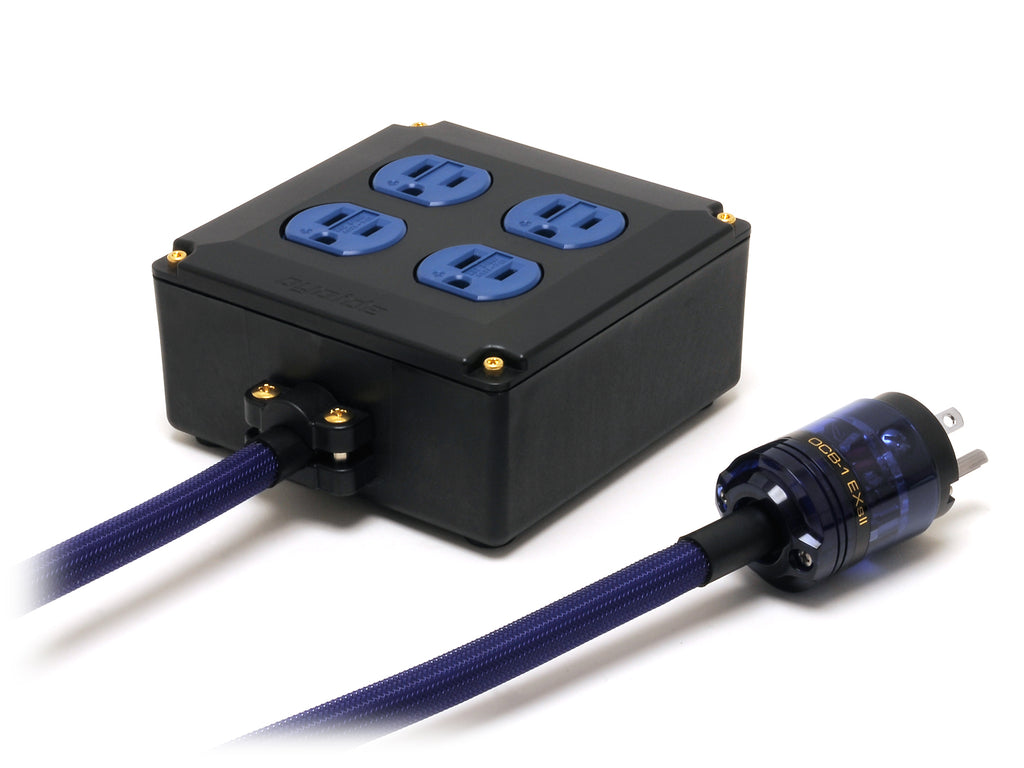

The OYAIDE OCB-1 EXs II is the high-end model of the OCB-1 (Oyaide Concent Box No.1) audio power strip series, released with the 2020 specification.

Cable

The attached L/i50 OFC II cable has a 4-core star-quad structure in which diagonally opposite conductors are twisted together to cancel radiated noise. The conductor is Japanese C1011 OFC (175 strands of 0.12mm), at 2.0sq × 4 cores, with an earth wire (0.75sq) added for 3-pin audio equipment. Insulation and sheath are flame-retardant polyolefin with a clear PVC outer coating that blocks external noise and protects against damage.

Plug and Outlets

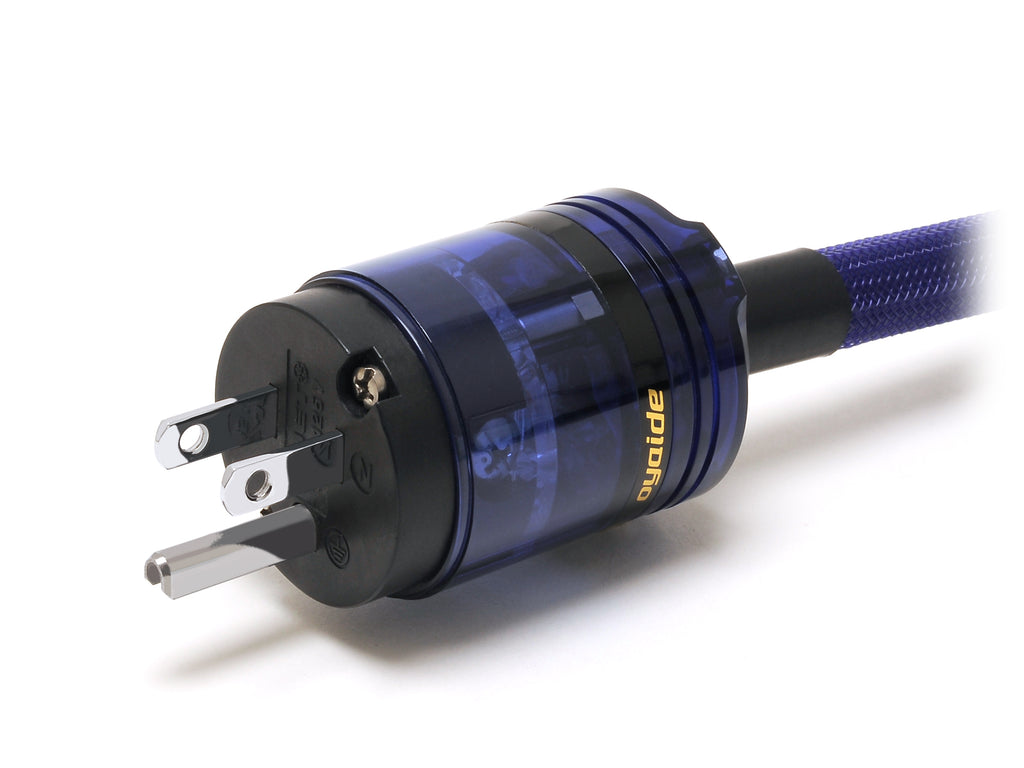

The plug is OYAIDE's AP-037 from the ARMORED series, in a dedicated color, with phosphor bronze blades with thick silver-rhodium plating and a mechanical earth structure. The outlets are OYAIDE SWO-DX/ULTIMO in blue, made of phosphor bronze with silver-rhodium plating. Inter-outlet wiring uses 4N Japanese pure silver single wire, 2.0mm, with skin-pass finish, and the earth wire uses OYAIDE's precision 102 SSC conductor.

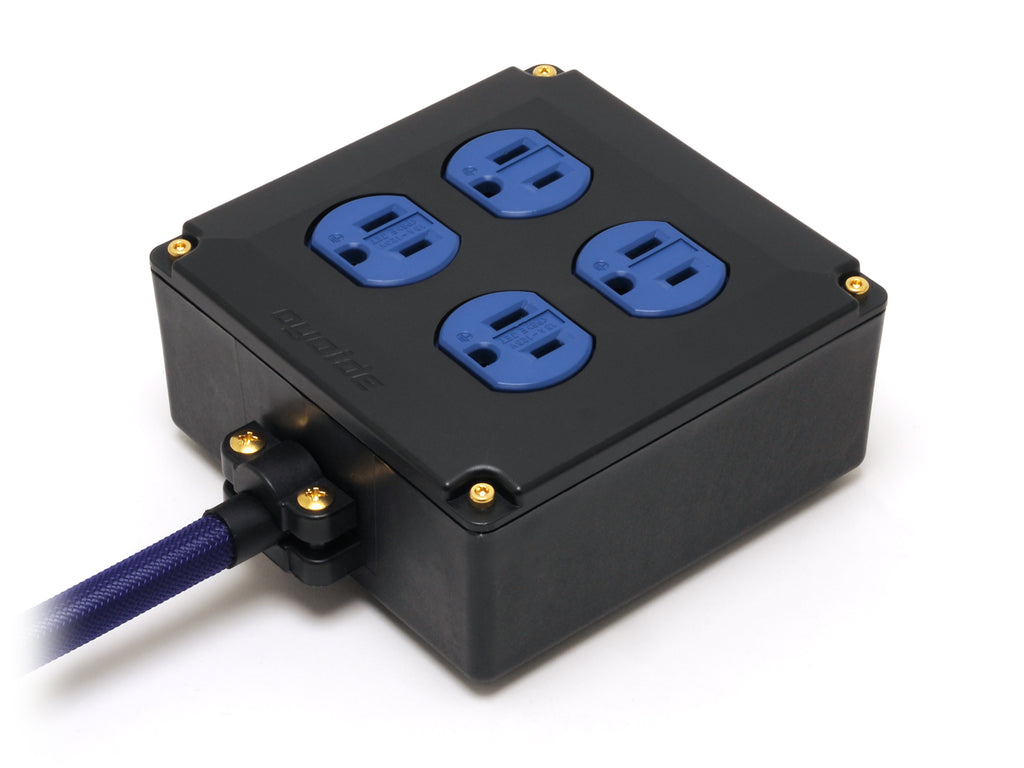

PBT-GF30 Outlet Box

The box is PBT resin with 30% glass fiber, with 4mm thick walls, carbon added for EMI consideration, four mounting posts and 13mm feet. OYAIDE says this reduces resonance and noise. Optional OSP-SC / OSP-SS spikes, the OCB-BS granite base or the INS-BS insulator base (all sold separately) can be attached to the M4 holes at the bottom.

Made in Japan

Specification

Model: OCB-1 EXs II

Outlets: 4, OYAIDE SWO-DX/ULTIMO (blue)

Cable: L/i50 OFC II, 2.0m

Conductor: Japanese C1011 OFC

Conductor Size: 2.0sq × 4 cores + earth wire (0.75sq)

Insulation: Flame-retardant polyolefin

Sheath: Flame-retardant polyolefin, outermost sheath clear PVC

Internal Wiring: Japanese pure silver single wire, 2.0mm

Outlet Box: PBT with 30% glass fiber

Plug: OYAIDE AP-037 (non-IP)

Weight: 1,045g

Rating: 125V / 15A

PSE certified, Japan domestic model
