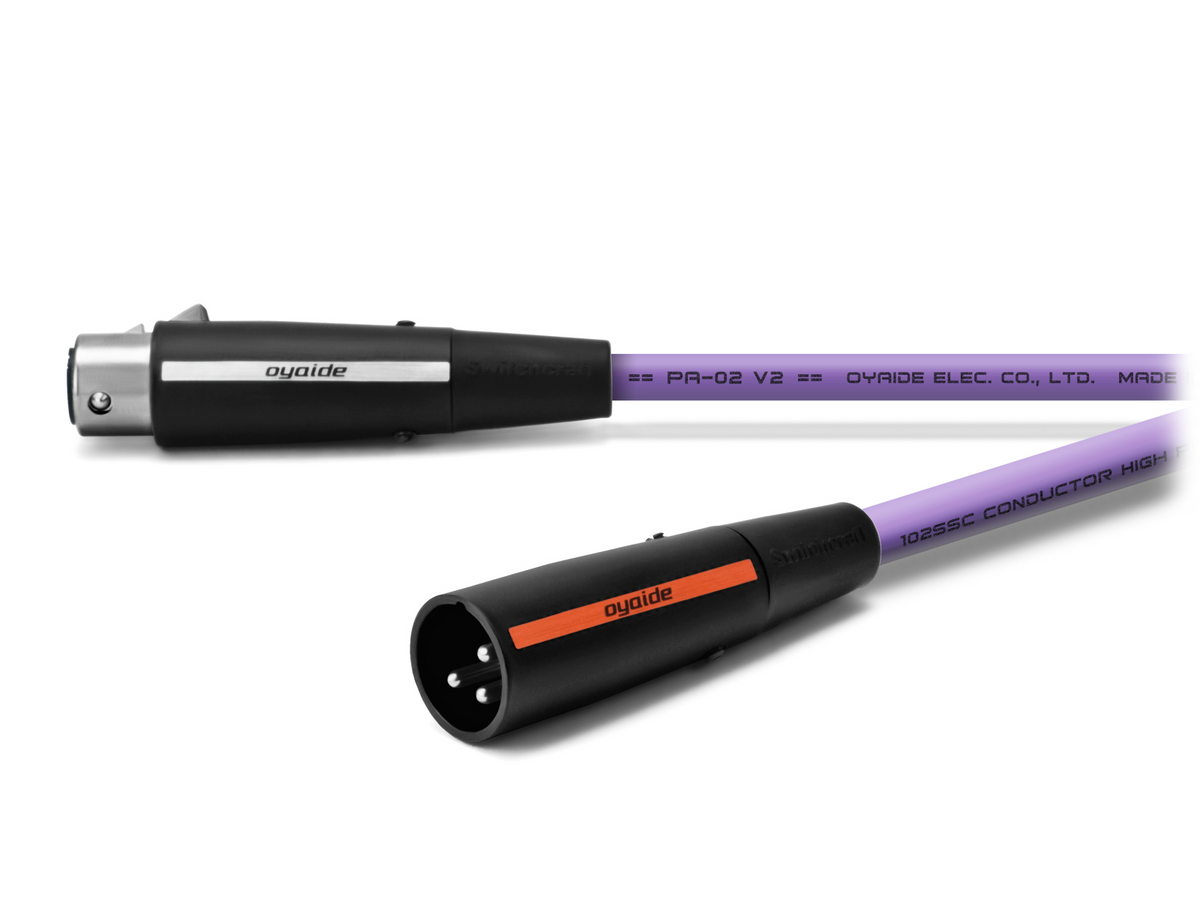

OYAIDE PA-02 TX V2 XLR Interconnect Signal Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE PA-02 TX V2 is an entry-level XLR interconnect cable (sold as a pair) with silver-plated Switchcraft XLR plugs, suitable for both audio equipment and professional gear.

Conductor

The 102 SSC conductor is 0.75sq (19 strands, 3E twist). OYAIDE states that only virgin copper is used, peeled to remove 100% of surface impurities and drawn through natural diamond dies with a tolerance of ±1μm (standard ±8μm). The patented 3E stranding combines three strand diameters to raise density and keep the cross-section round. The conductor is annealed twice and has a conductivity of 102.3% IACS.

Structure

A 2-conductor shielded cable with 120Ω impedance, suitable for analog signals and for digital (AES/EBU) signals. Insulation is foamed polypropylene. The shield is 102 SSC (24 groups of 8 strands, 0.12mm) with 80% braid coverage, and the sheath is OYAIDE's audio-dedicated halogen-free sheath (outer diameter 8.0mm, EU RoHS compliant).

Plugs and Solder

Switchcraft XLR plugs with silver-plated contacts. Soldering uses OYAIDE SS-47 lead-free silver solder, with tin purity of 99.993% (4N) or higher, 4.7% silver and 1.7% copper, and a eutectic point of 217°C.

102 SSC: Special Surface Copper, OYAIDE's precision copper conductor. It is made from virgin copper refined in Japan, with no recycled copper used. The conductor surface is specially smoothed using natural diamond dies, allowing extremely precise wire drawing with a diameter tolerance of approximately ±1μm.

Made in Japan

Specification

Model: PA-02 TX V2

Cable Lengths: 0.7m / 1.0m / 1.3m (pair)

Conductor: 102 SSC

Conductor Size: 0.75sq (19 strands, 3E twist)

Insulation: Foamed polypropylene

Shield: 102 SSC, 80% braid coverage

Sheath: Audio-dedicated halogen-free sheath

Outer Diameter: 8.0mm

Impedance: 120Ω

Plug: Switchcraft XLR plug, silver-plated contacts

Solder: SS-47 lead-free silver solder

Japan domestic model
