OYAIDE PH-01 RR Low-Capacitance RCA Phono Cable 1.0m with Ground Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE PH-01 RR is a low-capacitance RCA phono cable for MM and VM cartridges, such as the Audio-Technica VM series and the Ortofon 2M series. According to OYAIDE, it is optimized for the low load capacitance these cartridges are designed for, so that the capacitance between cartridge and amplifier stays matched to the cartridge.

Conductor and Construction

A single-core shielded design with a 102 SSC signal conductor (0.5sq, AWG20), XLPE insulation, a 102 SSC spiral shield and a Pb-free PVC jacket. Total capacitance is 160 pF (100 pF/m for the cable alone).

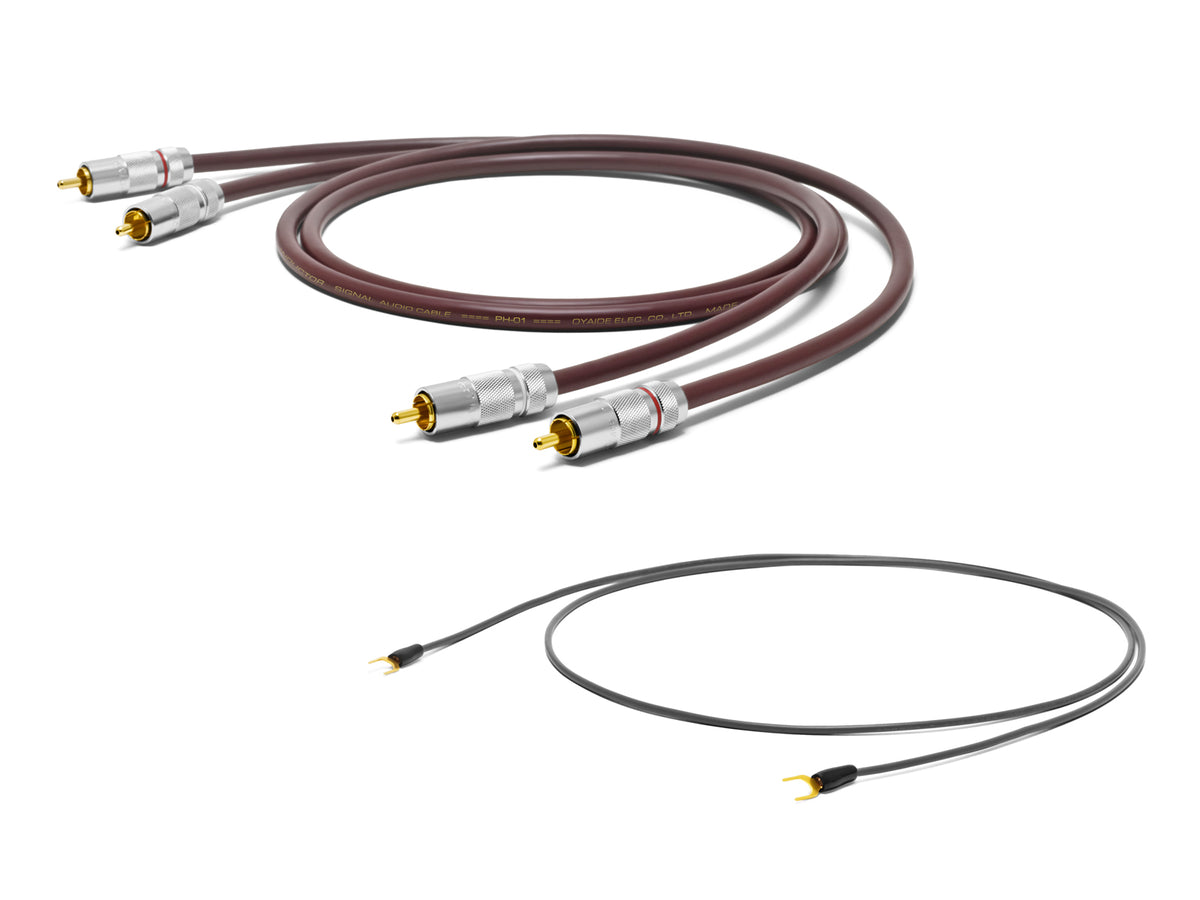

Separate Ground Cable

A separate 1.25sq (16 AWG) ground cable is included, with 24K gold-plated OFC spade connectors. The signal and ground cables are independent, so turntables with a built-in phono stage and no ground terminal can use the signal cable alone.

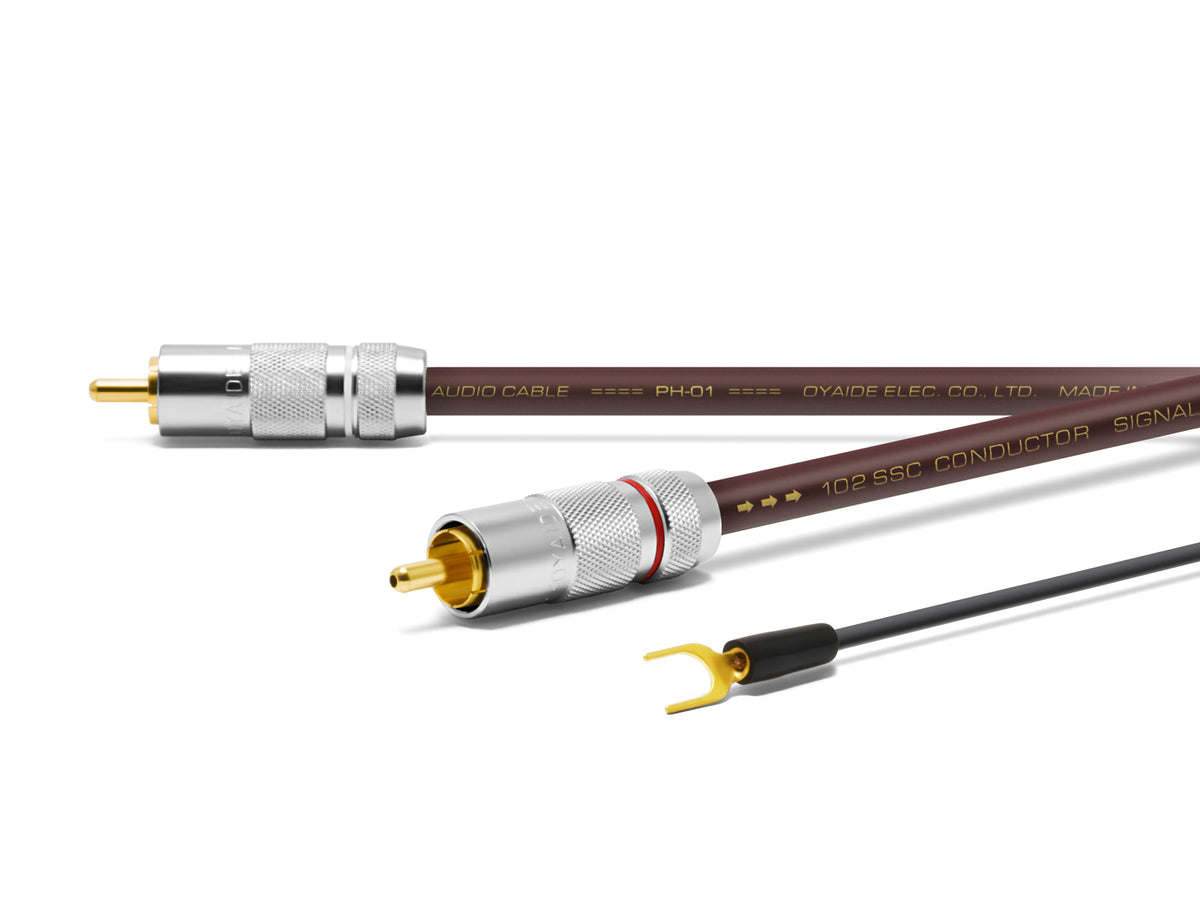

Plugs and Solder

Machined brass RCA plugs with 24K gold plating, soldered with Oyaide's SS-47 lead-free silver solder.

102 SSC: Oyaide's precision copper conductor. Only virgin copper conforming to JIS C1011, with no recycled copper, is used. Surface impurities are removed 100% by peeling, the wire is drawn with natural diamond dies to a tolerance of ±1μm, and it is annealed twice. Conductivity: 102.3% IACS.

Made in Japan

Specification

Model: PH-01 RR

Length: Signal cable 1.0m / Ground cable 1.1m

Plugs: RCA to RCA

Signal Conductor: 102 SSC, 0.5sq (19/0.18mm), AWG20

Shield: 102 SSC spiral (60/0.18mm)

Insulation: XLPE

Outer Jacket: Pb-free PVC

RCA Plugs: Machined brass, 24K gold plating

Ground Cable: 3398-16 (1.25sq, 16 AWG), OFC spade connectors with 24K gold plating

Capacitance: 160 pF total (cable only: 100 pF/m)

Solder: SS-47

Japan domestic model
