ZONOTONE GRANDIO USB-2.0 USB Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

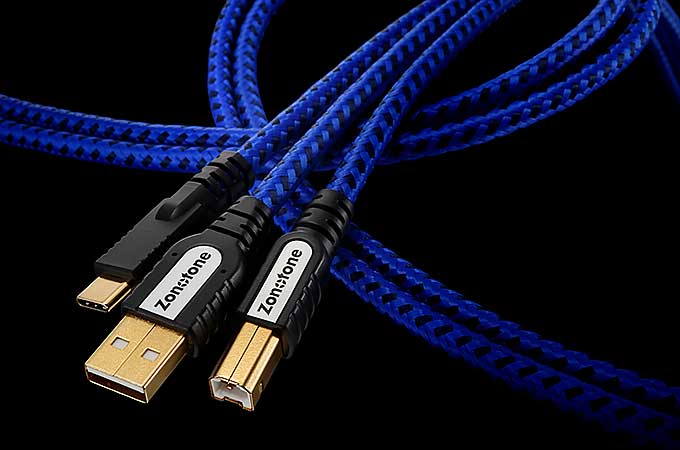

The ZONOTONE GRANDIO USB-2.0 is a high-grade USB cable that brings ZONOTONE's pure audio experience to USB transmission. Available with Type-A, Type-B and USB Type-C™ connectors.

Conductors

The signal lines are ZONOTONE's original hybrid of ultra-high-purity 6N (99.9999%) Cu, high-purity oxygen-free copper PCUHD and pure silver-coated OFC. The power lines are high-purity OFC. Signal lines are 0.105sq (approx. AWG27) and the important power lines are a thick 0.226sq, larger than typical USB cables.

Separated Signal and Power Lines

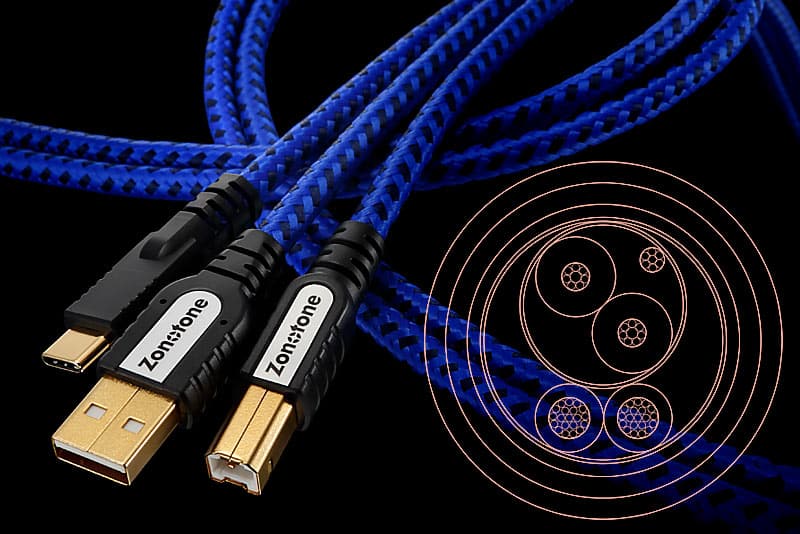

The cable uses a 4-core system with 2 signal lines and 2 power lines separated inside the cable. To prevent noise from the power lines, the signal lines have their own aluminum wrap shield, and the outer layer is a double shield of aluminum wrap and high-density copper braid to block external noise.

Double Jacket

A tough two-color nylon braid over the PVC sheath forms a double jacket that also helps with vibration damping.

Connectors

One-piece molded connectors with 24K gold-plated contacts.

Made in Japan

Specification

Model: GRANDIO USB-2.0

Signal Line Conductor: Ultra-high-purity 6N Cu, PCUHD, pure silver-coated OFC (3-material hybrid)

Power Line Conductor: High-purity OFC

Structure: 4-core (2 signal + 2 power)

Conductor Size: Signal 0.105sq (approx. AWG27) × 2, power 0.226sq × 2

Outer Jacket: Two-color nylon braid over sheath (double jacket)

Sheath: PVC (RoHS compliant)

Insulation: High-purity polyethylene

Shield: Inner aluminum wrap on signal lines; outer aluminum wrap + high-purity copper braid

Filler: Natural cotton yarn

Outer Diameter: 5.8mm

Connectors: One-piece molded, 24K gold-plated contacts

Japan domestic model

USB Type-C™ is a trademark of USB Implementers Forum.
