ZONOTONE GRANSTER AC-3000 Interconnect Signal Cable

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

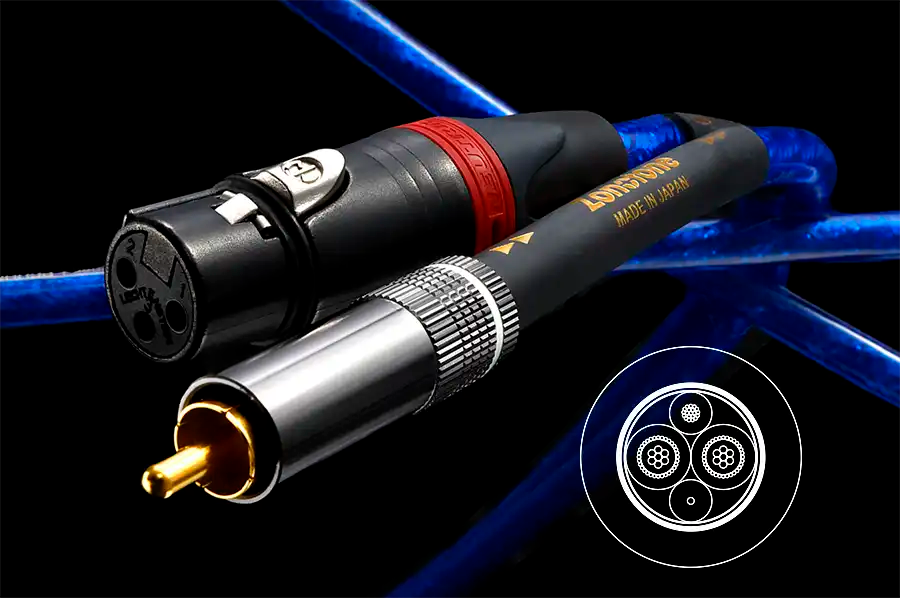

The ZONOTONE GRANSTER AC-3000 is a 2-core interconnect cable that inherits the structure of ZONOTONE's upper models, available with RCA or XLR connectors.

4-Material Hybrid Conductor

The conductor is a hybrid of ultra-high-purity 6N Cu, high-purity oxygen-free copper PCUHD, high-purity oxygen-free copper C1011 and high-purity OFC, blended in ZONOTONE's original “golden ratio”.

DMHC Structure

Each core uses the independent two-layer structure of dissimilar materials adopted in the upper models. With 2-core conductors, this corresponds to a 4-core structure. According to ZONOTONE, it achieves resolution and S/N close to the upper models.

Balanced Transmission (XLR)

The XLR version has a separate GND wire in addition to the two signal conductors, and the shield is grounded on one side (source side) for stable signal transmission. It also suits high-end AV amplifiers with balanced inputs.

Shield and Connectors

A double shield of aluminum wrap and high-density tinned copper braid is used. RCA: ZONOTONE's original precision-machined plug (nickel-plated cap, 24K gold-plated pin, max. cap diameter 13mm). XLR: Neutrik professional connectors with gold-plated contacts (max. diameter 20.5mm).

Made in Japan

Specification

Model: GRANSTER AC-3000

Conductor: Ultra-high-purity 6N Cu, PCUHD, C1011, OFC (4-material hybrid)

Structure: 2-core double shield; independent two-layer 2-core conductors (equivalent to 4 cores) used as hot and cold

Conductor Size: Hot / cold 0.73sq each (1 core)

Sheath: Clear blue PVC (EU-RoHS compliant)

Insulation: High-purity polyethylene

Shield: Aluminum wrap + high-density tinned copper braid

Filler: High-purity polyethylene

Outer Diameter: 8.5mm

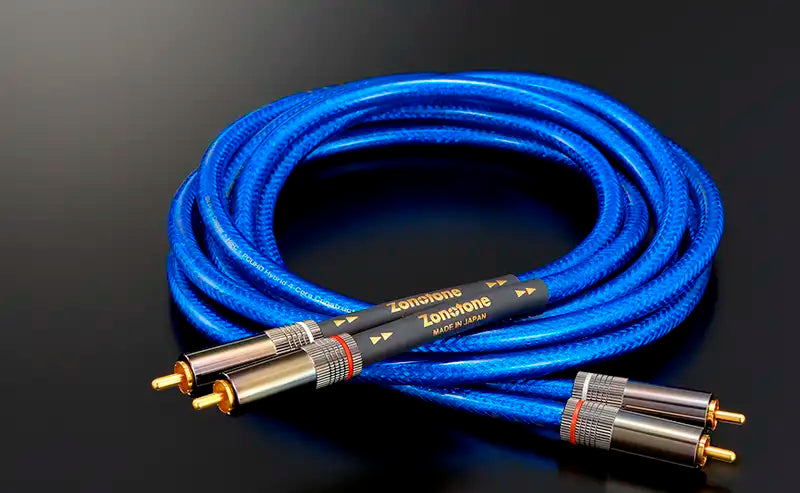

RCA Plug: Original precision-machined; nickel-plated cap / 24K gold-plated pin

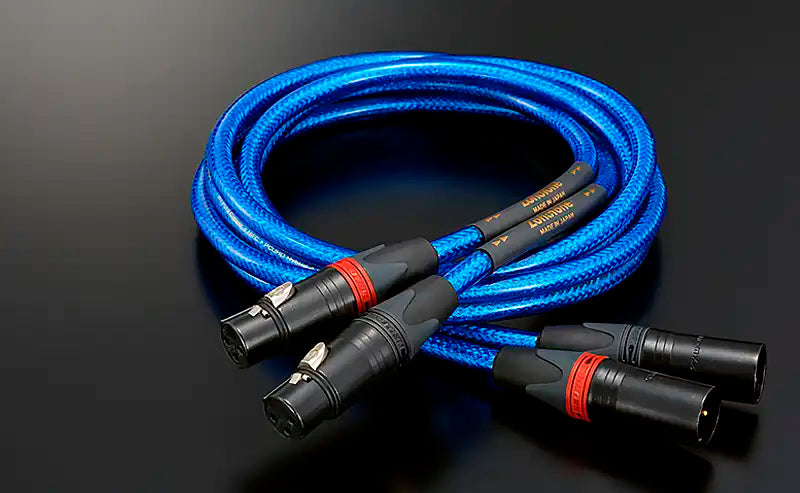

XLR Connector: Neutrik professional connector, gold-plated contacts

Sold as: Pair (L/R)

Japan domestic model
