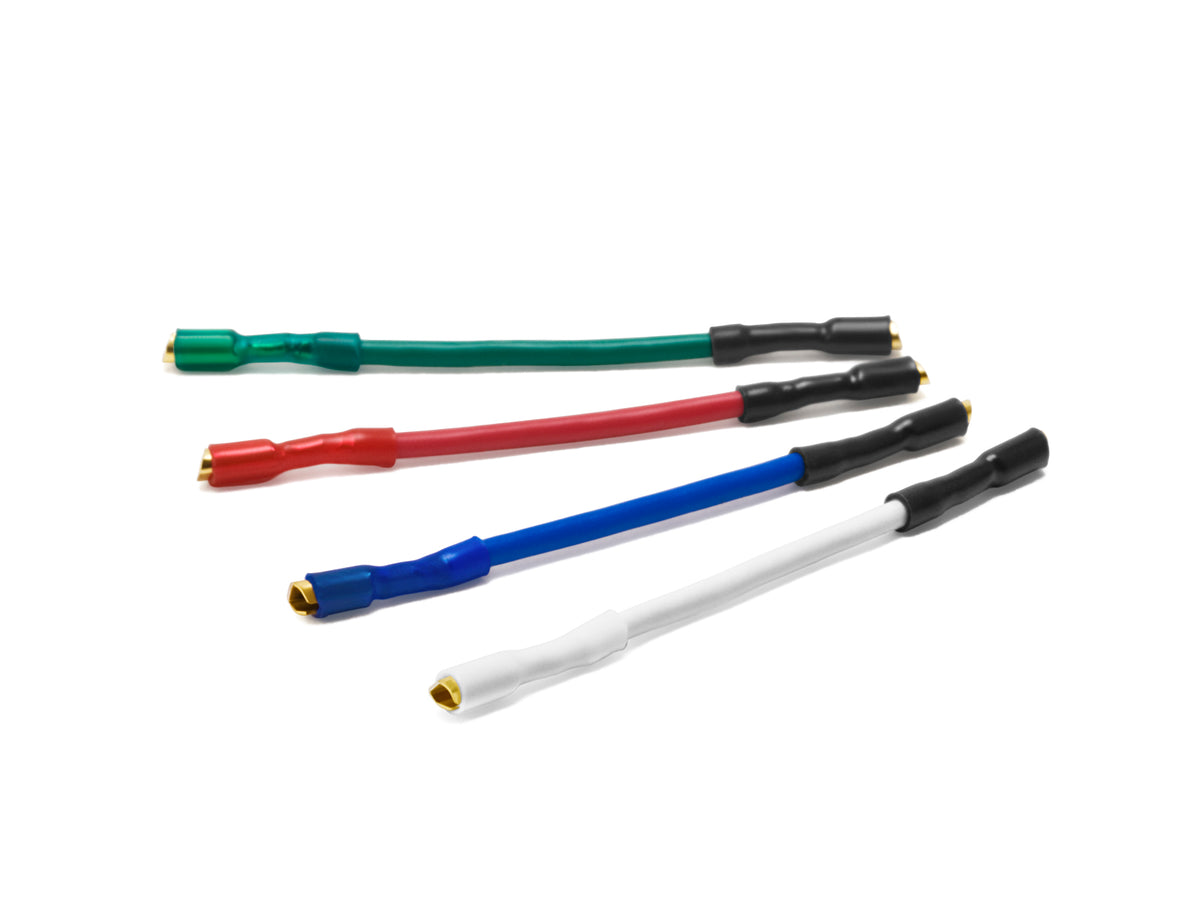

OYAIDE HSR-102 Headshell Lead Wire 102 SSC

All products for sale are Japan domestic models.

International Shipping directly from Japan.

Product package and manual will be in Japanese language.

Specification is the same as what is sold in Japan. Be sure to check if the same spec works in your environment.

Description

The OYAIDE HSR-102 is a set of four headshell lead wires and the successor to the discontinued HSR-CU. It combines a precision 102 SSC conductor with a super-flexible special resin insulation, which Oyaide says reduces static buildup while improving flexibility.

Conductor and Insulation

The 102 SSC conductor is rope-stranded (3/20/0.08 mm, 0.3 sq) for easier handling. The insulation is a super-flexible special resin, and the cable diameter is 1.4 mm.

Terminals

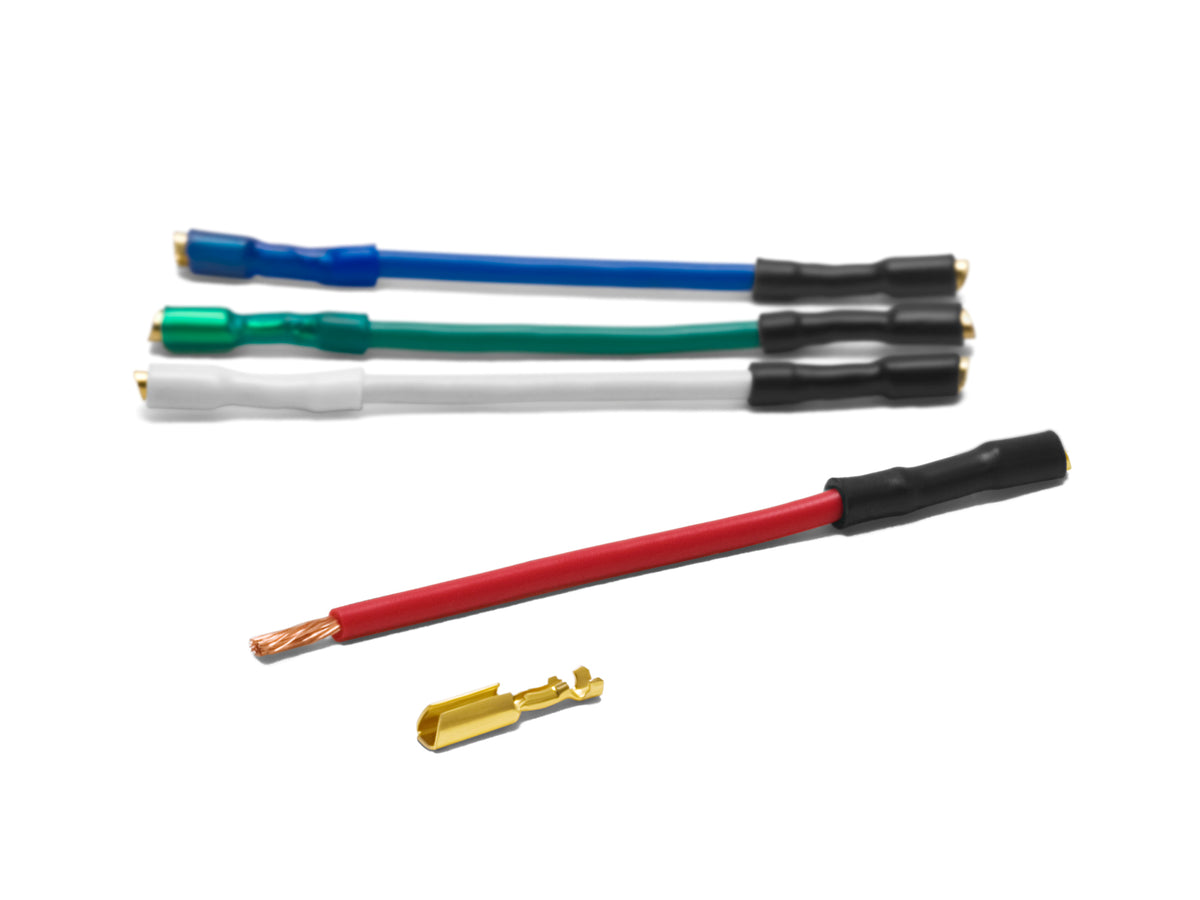

Phosphor bronze shell lead tips with 24K gold plating and insulating tubes on the tips. The wires are attached by solderless crimp.

Set Contents

Four 40 mm wires (red, white, blue, green).

102 SSC: Oyaide's precision copper conductor. Only virgin copper conforming to JIS C1011, with no recycled copper, is used. Surface impurities are removed 100% by peeling, the wire is drawn with natural diamond dies to a tolerance of ±1μm, and it is annealed twice. Conductivity: 102.3% IACS.

Specification

Model: HSR-102

Conductor: 102 SSC, 0.3 sq (3/20/0.08 mm)

Insulation: Super-flexible special resin

Cable diameter: 1.4 mm

Length: 40 mm

Terminals: Phosphor bronze, 24K gold plating, solderless crimp

Set: 4 wires (red / white / blue / green)

Weight: 0.9 g per set

Japan domestic model
